CL279 Cleat for underground recycling bags
Technical Details | Metric | Imperial | |
---|---|---|---|
Rope Diameter | 10mm | 3/8" | |
Material | Nylon | Nylon | |
Hole Centres | 95mm | 3 3/4" | |
Length | 198mm | 7 13/16" | |
Width | 55mm | 2 3/16" | |
Height | cleat 46mm | cleat 1 13/16 | |
Bolt Size | M6 | 7/32" | |
Screw Size | N/A | N/A | |
Weight | cleat 160gms | cleat 5.6oz |

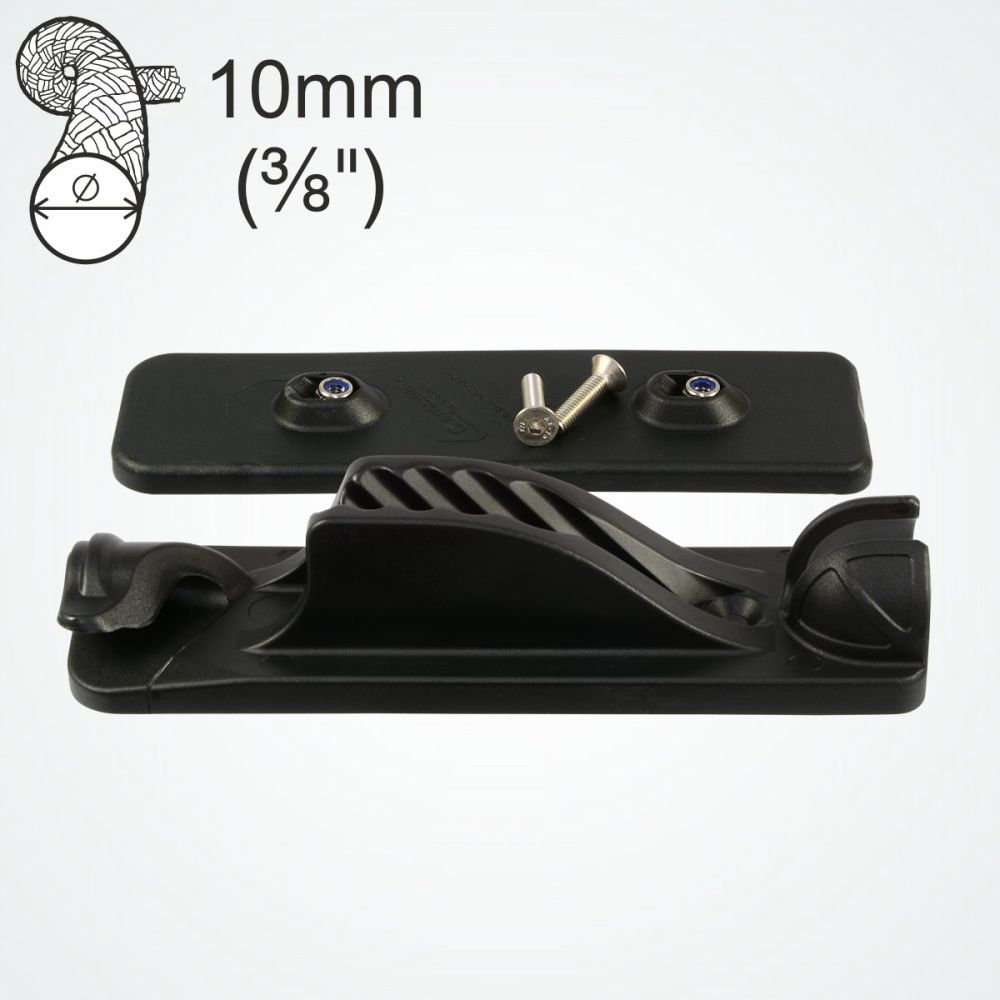

The Clamcleat® CL279 is used to tension the control rope on semi-buried recycling bag systems. Also known as deep collection containers. Supplied complete with backplate and stainless steel M6 fastenings. The nyloc nuts are pre-installed in the backplate to make assembly easy. Once assembled, the fabric of the bag is firmly gripped between the cleat base and backplate. The socket at the bottom of the CL279 holds the top end of the tube. A clip at the top holds the tail end of the rope. See the [Downloads] tab for technical information and leaflets.

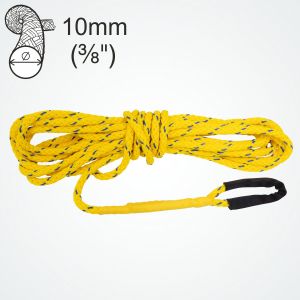

For the complete bag closure system, use CL279 with our PT406 loops and PT414-9 rope. You have a choice of tubes:-
PT413-1 tube for lighter bags.
PT416-1 heavy duty, corrosion proof tube.
PT417-1 very heavy duty tube that can be used as a handle.
