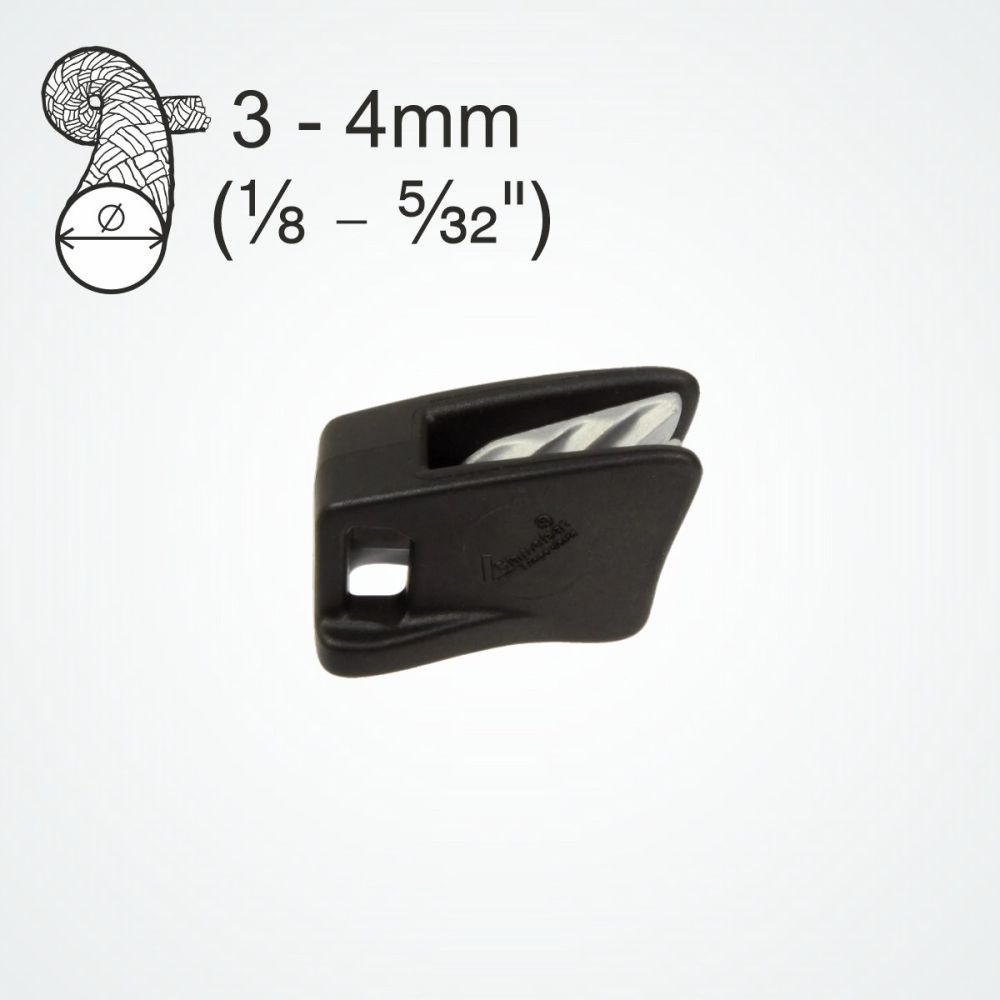

CL289 Racing Wingfoil Harness Line cleat
Racing Harness Line cleat for 3mm rope
| Technical Details | Metric | Imperial | |
|---|---|---|---|
| Rope Diameter | 3mm | 1/8" | |
| Material | Aluminium & Nylon | Aluminium & Nylon | |
| Hole Centres | n/a | n/a | |
| Length | 37mm | 1 7/16" | |
| Width | 22mm | 7/8" | |
| Height | 27mm | 1 1/16 | |
| Bolt Size | n/a | n/a | |
| Screw Size | n/a | n/a | |
| Weight | 13gms | .45oz |
Specially designed for Wingfoil Harnesses, the Clamcleat® CL289 uses a strap to fit onto wingfoil booms. Holds 3-4mm ropes to help make a lightweight, strong and long lasting rig.
Developed with professional wingfoiler Guy Cribb to meet the demands of the latest waingsails and booms.
# Very Compact, very lightweight design. Specifically design for wingfoil harness lines.
# Easy to adjust while sailing.
# Impact resistant materials chosen for marine use.
# Incorporates a strong aluminium cleat for higher loads and long life.
# Can also be held onto tubes and bars using cable ties (Zip ties)
The CL289 was designed to work perfectly with 3mm (1/8") ropes, but ropes up to 4mm diameter can be fitted if the end of the rope is cut at an angle.
The full harness line is CL289-KitB
For lighter duties, consider the CL291 all polymer cleat.
If you want to adjust the shape of the wing, look at our CL244/S9, which tensions a rope along the boom.
