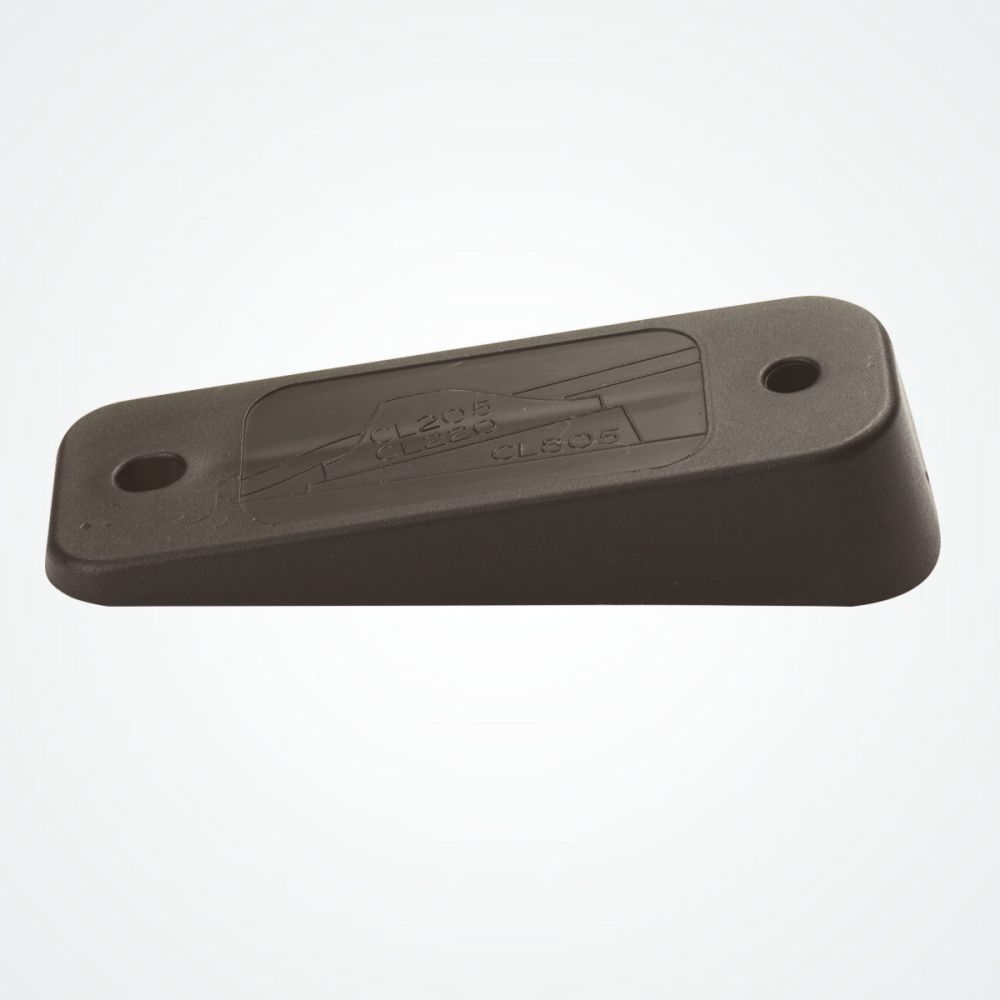

CL805 Tapered Pad for CL205 & CL220
CL805 Fits under CL205 & CL220 to aid rope/cleating alignment.
| Technical Details | Metric | Imperial | |
|---|---|---|---|
| Rope Diameter |  |
N/Amm | N/A" |
| Material |  |
Polypropylene | Polypropylene |
| Hole Centres |  |
95mm | 3 3/4" |
| Length |  |
131mm | 5 1/8" |
| Width |  |
45mm | 1 3/4" |
| Height |  |
27mm | 1 1/16 |
| Bolt Size |  |
M8 | 5/16" |
| Screw Size |  |
N/A | N/A |
| Weight |  |
35gms | 1.2oz |
Availability:
In stock
SKU
Clamcleat-CL805
The Clamcleat® CL805 Tapered Pad is ideal for aligning the cleat that is used to hold a winch tail. CL805 tapered pad fits under CL205, CL220, CL239 and CL240 cleats. Can be mounted either way round.
CL805 is designed for use with these cleats; all for 12-16mm ropes:
CL205 Nylon Vertical cleat.
CL220 Aluminium Racing Vertical cleat.
CL239 Nylon Vertical cleat with Spring Gate, to keep the rope out of the cleat when the rope needs to run free.
CL240 Aluminium Racing Vertical cleat with Spring Gate, to keep the rope out of the cleat when the rope needs to run free.
Write Your Own Review
Q: What is a Clamcleat® tapered pad?
Ans: Clamcleat® make different sizes of tapered pads for all of its range of cleats. The tapered pad fits under the cleat (either way around) and aids rope alignment keeper.
CL802 for CL204&CL222
CL803 for CL209 & CL254
CL804 for CL201, CL219, CL237 & CL238
CL805 for CL205 & CL220
CL818 for CL203, CL211Mk1, CL217Mk1, CKL218Mk1, CL236 & CL704
CL819 for CL211Mk2, CL217Mk2, CL218Mk2 & CL211Mk2/S2
CL823 for CL274 & CL275
Q: Does Clamcleat® make accessories for the cleats?
Ans: Clamcleat® make a range of accessories for 3 sizes of fairlead cleat, CL268 and Mk2 range and the Mk1 range of cleats. The accessories are a tapered pad, Keeper (keeps the rope either in or out of the cleat) and the Cage (allows the rope to enter the cleat even if the lead angle is poor)
Q: How can I improve the rope lead into my Clamcleat® cleats?
Ans: Clamcleat® make a range of tapered pads which fit under the cleat to aid alignment. Also, the Cage (allows the rope to enter the cleat even if the lead angle is poor)
