CL231 Midi with Integral Fairlead
Compact black nylon cleat
| Technical Details | Metric | Imperial | |
|---|---|---|---|
| Rope Diameter |  |
4-8mm | 5/32-5/16" |
| Material |  |
Nylon | Nylon |
| Hole Centres |  |
54mm | 2 1/8" |
| Length |  |
88mm | 3 1/2" |
| Width |  |
22mm | 1 7/8" |
| Height |  |
26mm | 1 |
| Bolt Size |  |
M5 (Bolt only) | #10-24. 3/16" (Bolt only) |
| Screw Size |  |
4.8mm | No 10 |
| Weight |  |
30gms | 1.1oz |
Availability:
In stock
SKU
Clamcleat-CL231

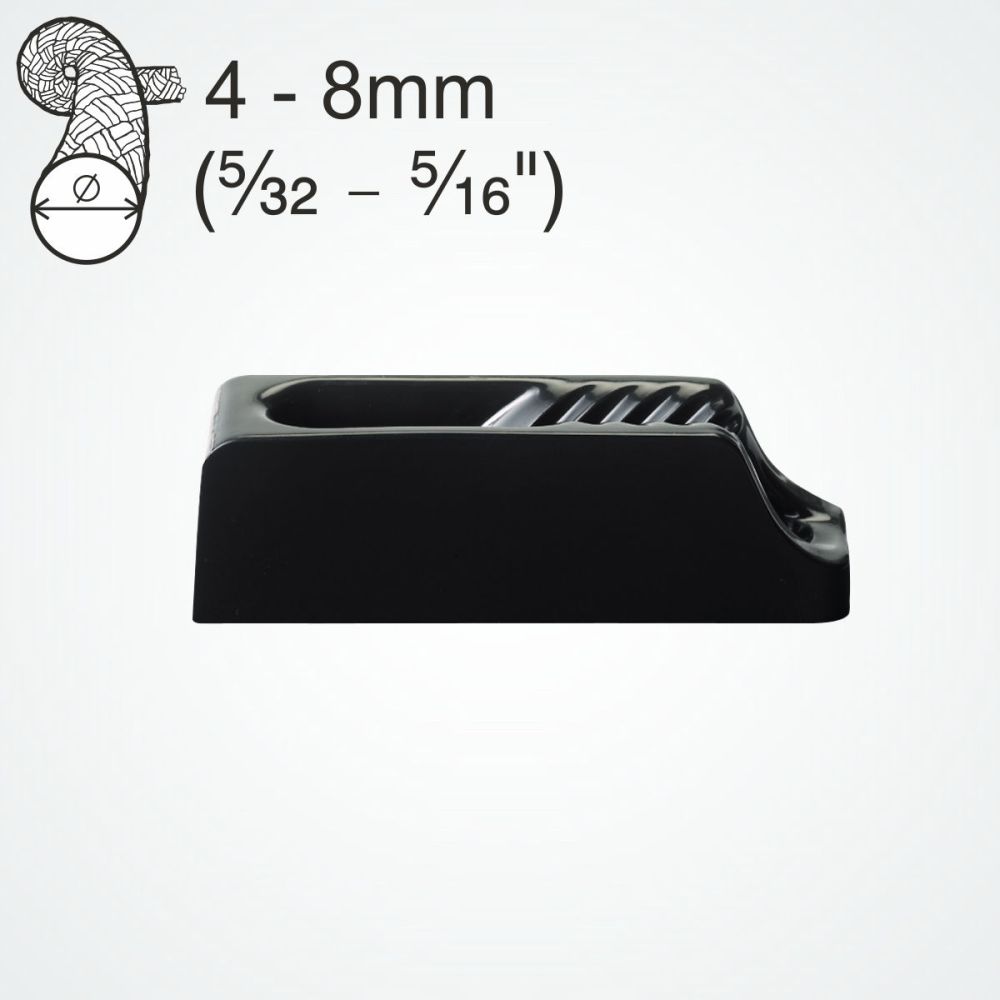

The Clamcleat® CL231 is a compact black nylon cleat with integral fairlead to guide the rope into the teeth from up to 90 degrees. Same hole centres as CL209 and CL254. Fix with bolts or screws onto flat or curved surfaces.
One use is for tensioning sunshades.
The nylon CL209 has the same hole centres, with without a fairlead.
The aluminium CL254has the same hole centres, with without a fairlead.
For larger ropes, look at the nylon CL228, with fairlead.
For smaller ropes, look at these nylon fairlead cleats:- CL272 and CL203.
Write Your Own Review
Q: What size of rope can you use on the Clamcleat® CL231?
Ans: The CL231 will accept ropes from 4-8mm 5/32-5/16”
Q: What is a fairlead cleat?
Ans: A fairlead guides the rope through the cleat making it easier to adjust the position of the rope. The rope will need to be threaded through the cleat during installation.
Q: What fixing do I need to secure the Clamcleat® CL231 Cleat?
Ans: The fixing for a CL231 cleat is M5 CSK or 4.8mm no 10 woodscrews.
Q: What are the hole centers for securing the Clamcleat® CL231 Cleat?
Ans: The hole centers for the CL231 cleat are 54mm 2 1/8”.
Q: Is there a tapered pad for the Clamcleat® CL231 cleat?
Ans: The tapered pad for the CL231 is CL803.
Q: Why does Clamcleat® not publish safe working loads (SWL) or break loads for its cleats?
Ans: The quality, type and style of the rope or cord plays a major role in the performance of the cleat. Normally the better the quality of the rope the greater holding power, also some cleats are designed to slip once they exceed the desired holding load as a safety feature including securing fabrics such as sunshades or covers.
Q: How long should a Nylon cleat last?
Ans: This really depends on the usage, the quality and age of the rope used etc. so is very difficult to gauge. The ultraviolet rays will discolor the cleats over time and in very sunny climates may affect the life of the cleat. In extreme climates the life expectancy should be 10 -15 years depending on usage and in more moderate climate 20 + years.
Q: What type of rope or cord will give the best performance on my cleats?
Ans: In our experience a braided good quality rope gives you the best holding performance.
Q: What size of rope should I use on my CL*** cleat?
Ans: The size of rope used on the CL**** is from ******* to ****.
Q: Is there any maintenance required to a cleat to keep it performing well?
Ans: We would recommend flushing the with fresh water as often are you can.
