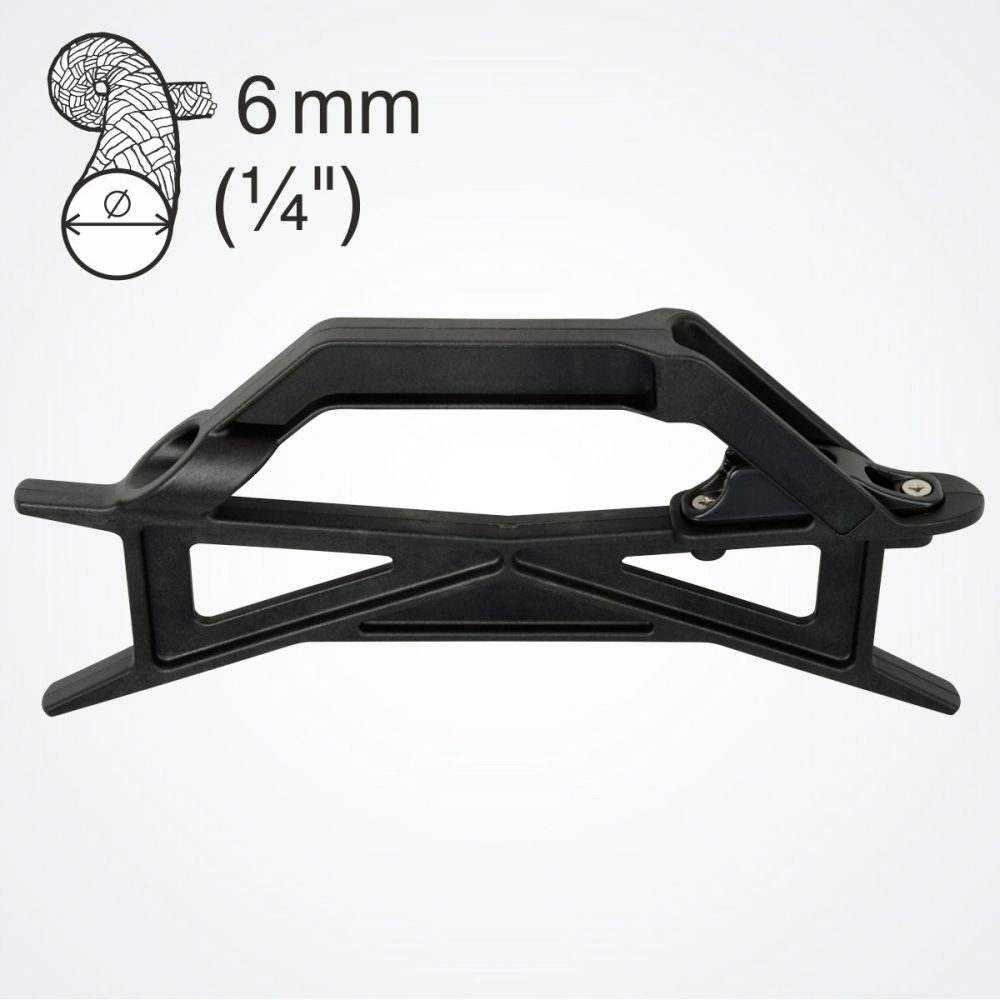

PT300771 Mast guyline tensioning reel

Be the first to review this product

Technical Details	Metric	Imperial
Rope Diameter	6mm	1/4"
Material	Aluminium & Nylon	Aluminium & Nylon
Hole Centres	n/a	n/a
Length	303mm	12"
Width	32mm	1 1/4"
Height	144mm	5 5/8
Bolt Size	n/a	n/a
Screw Size	n/a	No 10
Weight	245gms	8 1/2oz

Availability:

In stock

SKU

Clamcleat-PT300771

Details

The Clamcleat® PT300771 Reel allows guylines on larger portable masts to be quickly and easily tensioned and released. The rope is also stored on the reel. Ideal for larger radio and comms masts.

The PT300771 is impact resistant and suitable for all climates, from sub-zero to hot deserts. It can easily be used when wearing thick gloves. Also corrosion proof and fully weather proof.

In use, the rope is unwound from the reel as the mast is prepared for erection. To tension, the reel is simple pushed up the guyline - the cleat aitomatically grips the rope. To release, the rope is simply pulled up towards the handle.

Available individually, in boxes of 10 or boxes of 90.

For samller masts, look at the CL827-11 which has the same alloy cleat.
For lighter masts the CL271 is great value and suitable for all climates.

Reviews

Write Your Own Review

Q: What size of rope should I use on my PT300771 mast guyline tensioning reel?

Ans: The size of rope used on the PT300771 is 6mm.

Q: Does Clamcleat® make products for Mast-aerial?

Ans: There is a range of products made by Clamcleat® which include the Line-Lok® which consists of 4 sizes of cleat CL260, CL266, CL271 and CL276 and they also make a range of Aero Cleats which can be used to tension mast-aerial guy lines CL826-11 to CL829-11. For the larger portable masts, the PT300771 is ideal as it tensions the guy line and also acts as a reel to store the line when not in use.

Q: Does Clamcleat® make a portable mast guy line tensioning reel?

Ans: For the larger portable masts the PT300771 is ideal as it tensions the guy line and also acts as a reel to store the line when not in use.

Q: Why does Clamcleat® not publish safe working loads (SWL) or break loads for its cleats?

Ans: The quality, type and style of the rope or cord plays a major role in the performance of the cleat. Normally the better the quality of the rope the greater holding power, also some cleats are designed to slip once they exceed the desired holding load as a safety feature including securing fabrics such as sunshades or covers.

Q: Do you get a better performance with an Aluminum cleat?

Ans: Aluminum cleats do not improve the performance of the cleat, but they can achieve higher holding loads and they also might improve the lifespan of the cleat especially if the rope will be in contact with the teeth whilst the rope is being pulled through during adjustment.

Q: What different coating are there for the Aluminum cleats?

Ans: The standard coating for the cleat is a Stoving Aluminum silver enamel coating. For extra protection from corrosion and a high-tech appearance the cleats are also available in a dark grey Hard anodized finish. The part no in suffixed with “AN” to identify the hard anodized finish.

Q: How long should an Aluminum cleat last?

Ans: This really depends on the usage, the quality and age of the rope used etc. so is very difficult to gauge. The ultraviolet rays will discolor the cleats over time and in very sunny climates may affect the life of the cleat. In extreme climates the life expectancy should be 10 -15 years depending on usage and in more moderate climate 20 + years.

Q: What type of rope or cord will give the best performance on my cleats?

Ans: In our experience a braided good quality rope gives you the best holding performance.

Q: Is there any maintenance required to a cleat to keep it performing well?

Ans: We would recommend flushing the with fresh water as often are you can.
