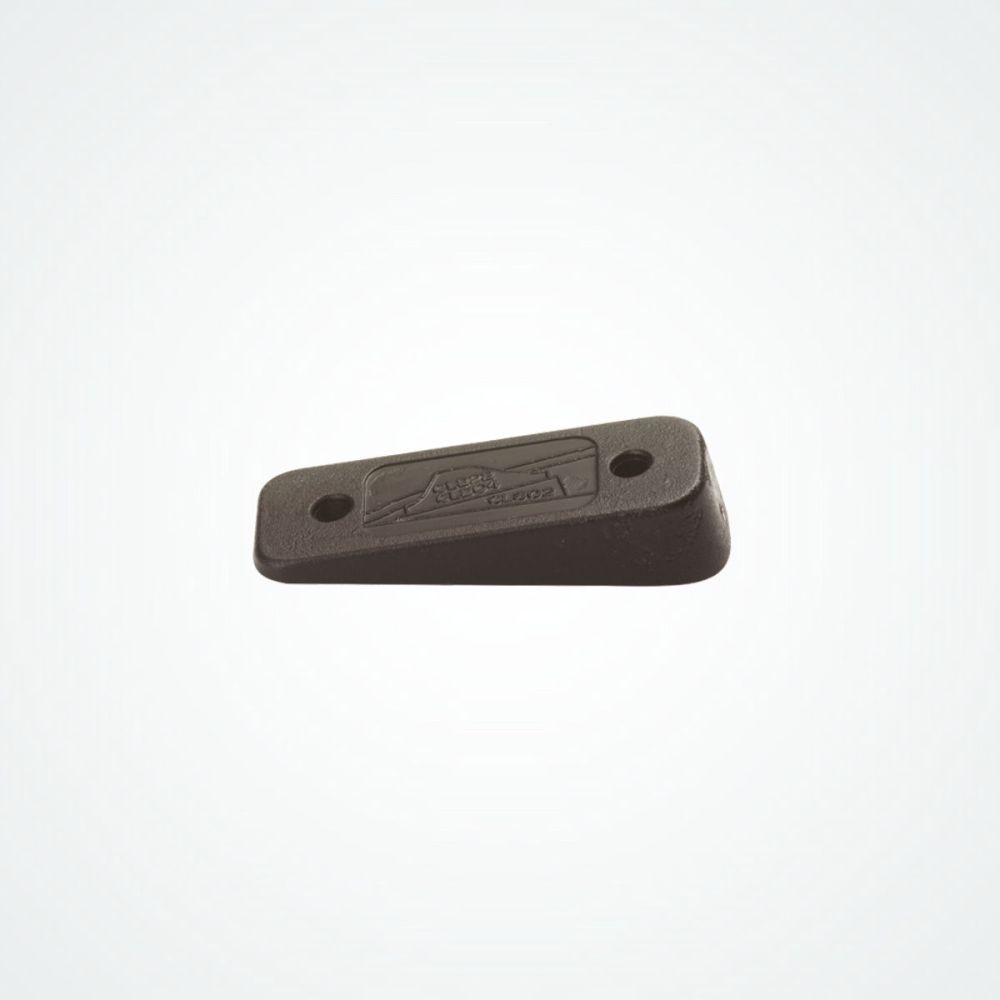

CL802 Tapered Pad for CL204 & CL222

Be the first to review this product

Aids rope alignment forr CL204, CL222

Technical Details	Metric	Imperial
Rope Diameter	N/Amm	N/A"
Material	Polypropylene	Polypropylene
Hole Centres	36mm	1 7/16"
Length	57mm	2 1/4"
Width	20mm	13/16"
Height	12mm	1/2
Bolt Size	M4	#8-32. 5/32
Screw Size	4.2	No 8
Weight	4gms	0.1oz

Availability:

In stock

SKU

Clamcleat-CL802

Details

Tapered Pads are usually used as an aid to rope alignment. Clamcleat® CL802 Tapered Pad fits under CL204, CL222 and CL222AN cleats to angle them at 10 degrees.

Can be used either way round, or stacked. Double stack the same way round to angle the cleat at 20 degrees. Or make a riser block to rais the cleat by about 12mm.

CL802 is used with CL204 Nylon Mini cleat and CL222 Racing Mini cleat, both for 3-6mm ropes.

Reviews

Write Your Own Review

Downloads

Q: What is a Clamcleat® tapered pad?

Ans: Clamcleat® make different sizes of tapered pads for all of its range of cleats. The tapered pad fits under the cleat (either way around) and aids rope alignment keeper.

CL802 for CL204&CL222

CL803 for CL209 & CL254

CL804 for CL201, CL219, CL237 & CL238

CL805 for CL205 & CL220

CL818 for CL203, CL211Mk1, CL217Mk1, CKL218Mk1, CL236 & CL704

CL819 for CL211Mk2, CL217Mk2, CL218Mk2 & CL211Mk2/S2

CL823 for CL274 & CL275

Q: Does Clamcleat® make accessories for the cleats?

Ans: Clamcleat® make a range of accessories for 3 sizes of fairlead cleat, CL268 and Mk2 range and the Mk1 range of cleats. The accessories are a tapered pad, Keeper (keeps the rope either in or out of the cleat) and the Cage (allows the rope to enter the cleat even if the lead angle is poor)

Q: How can I improve the rope lead into my Clamcleat® cleats?

Ans: Clamcleat® make a range of tapered pads which fit under the cleat to aid alignment. Also, the Cage (allows the rope to enter the cleat even if the lead angle is poor)
