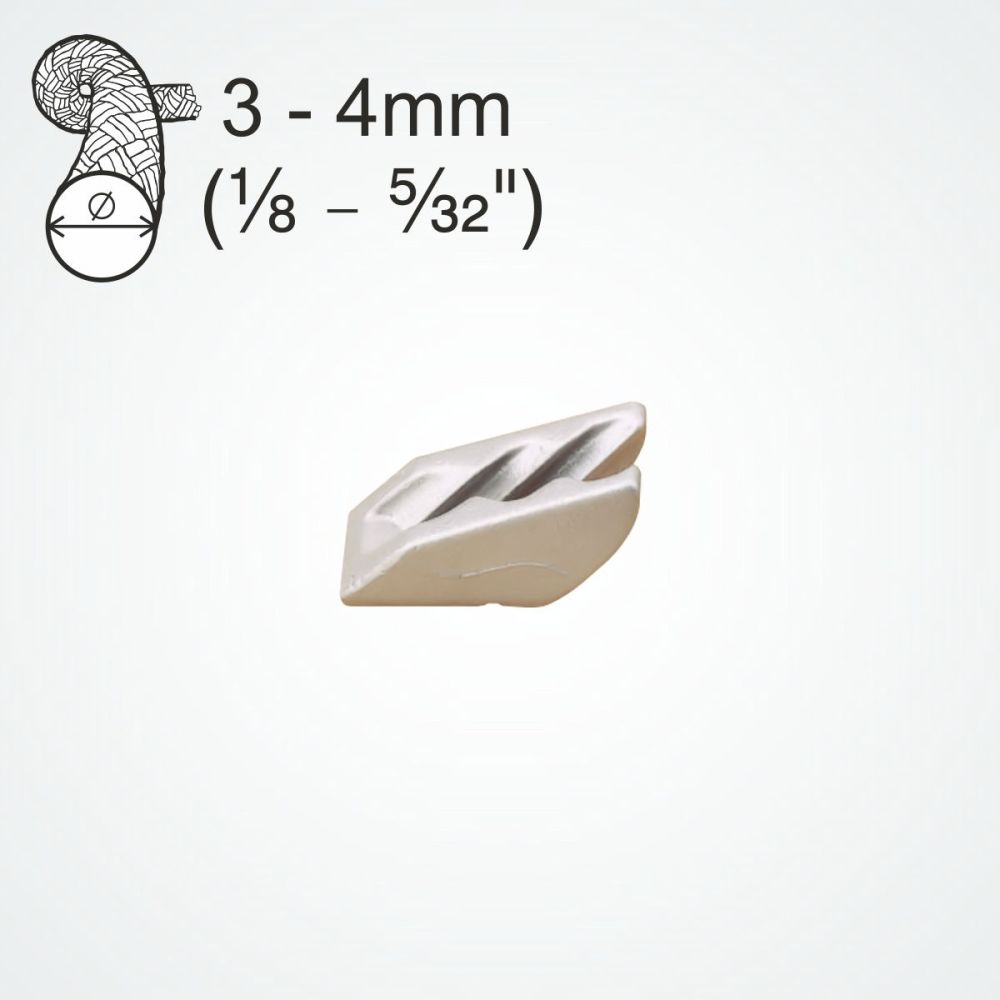

CL716 Very Small Alloy Insert Cleat
Alloy cleat inserts into a plastic moulding
| Technical Details | Metric | Imperial | |
|---|---|---|---|
| Rope Diameter |  |
3 - 4mm | 1/8 - 5/32" |
| Material |  |
Aluminium | Aluminium |
| Hole Centres |  |
n/a | n/a |
| Length |  |
24mm | 15/16" |
| Width |  |
11mm | 7/16" |
| Height |  |
14mm | 9/16 |
| Bolt Size |  |
n/a | n/a |
| Screw Size |  |
n/a | N/A |
| Weight |  |
4gms | 0.1oz |
Availability:
In stock
SKU
Clamcleat-CL716
The Clamcleat® CL716 is designed to be insert moulded into a plastic fitting to combine the strength of an alloy cleat with the lower cost of a moulded component.
The additional advantage of its design is that it allows you to position the cleat nearer to where the rope runs through the fitting, reducing the cleating angle and the space required within the fitting.
CL716 is the alloy cleat used in our CL267 Sail Edge cleat.
The CL716 cleat is a smaller, lighter version of the CL712.
CL715 is a similar alloy cleat with a more cylindrical shape.
Write Your Own Review
What is an insert cleats?
Ans: A insert cleat is an Aluminum cleat which snap fits into a plastic moulding on a mast base or boom end. It combines the strength of an aluminum cleat with the lower cost of a moulded part.
What insert cleats does Clamcleat® make?
Ans: Clamcleat® produces 5 different insert cleats; CL243L, CL244L, CL712, CL715 and CL716.
What size of rope should I use on my CL716 cleat?
Ans: The size of rope used on the CL716 is from 3 to 4mm (1/8-5/32”).
Q: Why does Clamcleat® not publish safe working loads (SWL) or break loads for its cleats?
Ans: The quality, type and style of the rope or cord plays a major role in the performance of the cleat. Normally the better the quality of the rope the greater holding power, also some cleats are designed to slip once they exceed the desired holding load as a safety feature including securing fabrics such as sunshades or covers.
Q: Do you get a better performance with an Aluminum cleat?
Ans: Aluminum cleats do not improve the performance of the cleat, but they can achieve higher holding loads and they also might improve the lifespan of the cleat especially if the rope will be in contact with the teeth whilst the rope is being pulled through during adjustment.
Q: What different coating are there for the Aluminum cleats?
Ans: The standard coating for the cleat is a Stoving Aluminum silver enamel coating. For extra protection from corrosion and a high-tech appearance the cleats are also available in a dark grey Hard anodized finish. The part no in suffixed with “AN” to identify the hard anodized finish.
Q: How long should an Aluminum cleat last?
Ans: This really depends on the usage, the quality and age of the rope used etc. so is very difficult to gauge. The ultraviolet rays will discolor the cleats over time and in very sunny climates may affect the life of the cleat. In extreme climates the life expectancy should be 10 -15 years depending on usage and in more moderate climate 20 + years.
Q: What type of rope or cord will give the best performance on my cleats?
Ans: In our experience a braided good quality rope gives you the best holding performance.
Q: Is there any maintenance required to a cleat to keep it performing well?
Ans: We would recommend flushing the with fresh water as often are you can.
