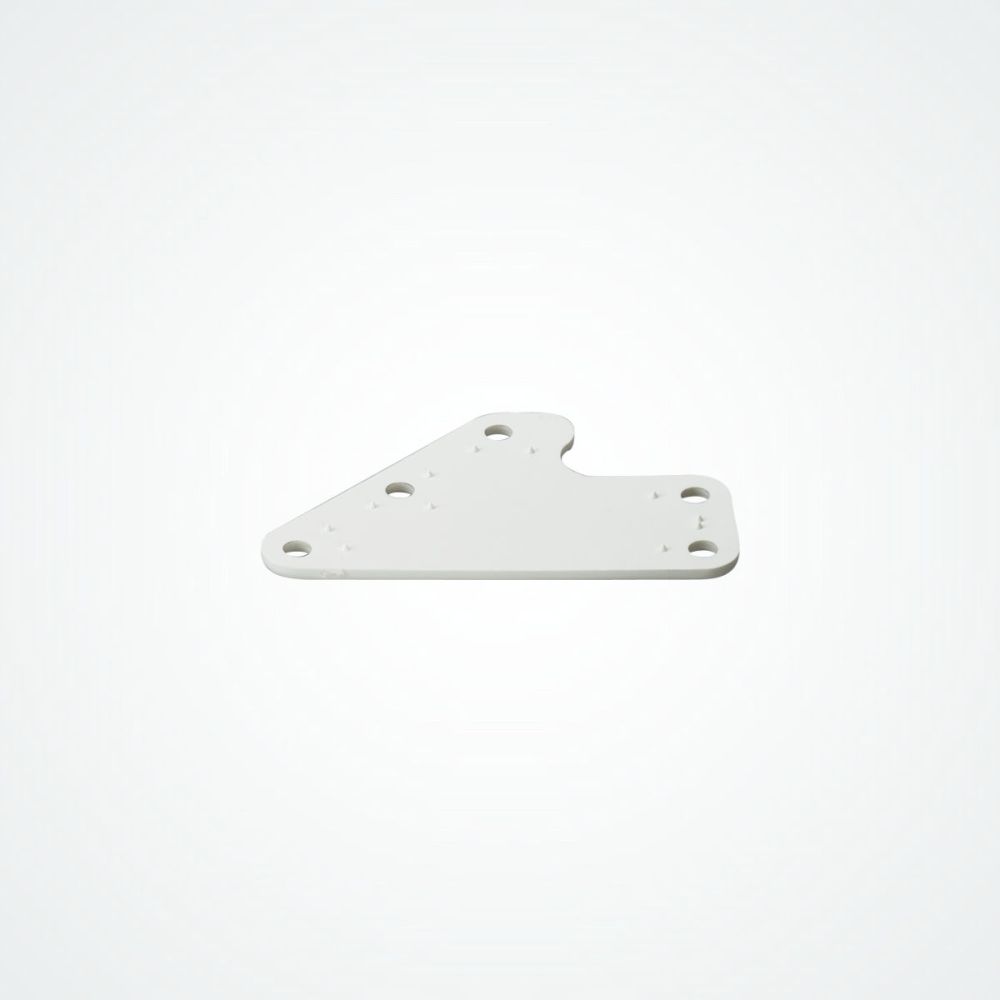

CL233BP Backplate
Backplate for CL233
| Technical Details | Metric | Imperial | |
|---|---|---|---|
| Rope Diameter |  |
N/Amm | N/A" |
| Material |  |
Nylon | Nylon |
| Hole Centres |  |
N/Amm | N/A" |
| Length |  |
56mm | 2 1/4" |
| Width |  |
35mm | 1 3/8" |
| Height |  |
2mm | 1/16 |
| Bolt Size |  |
N/A | N/A |
| Screw Size |  |
N/A | N/A |
| Weight |  |
2gms | 0.08oz |
Availability:
In stock
SKU
Clamcleat-CL233BP
CL233BP is a Backplate for Clamcleat® CL233 Sail Line Cleat. Using a backplate when attaching a cleat to cloth will provide a stronger fixing as the backplate will prevent the stitching/rivets pulling though the fabric in extreme conditions. Most people sew these, but you can use small rivets.
CL233BP can be purchased separately or with the CL233 Sale Line cleat.
Write Your Own Review
Q: What size of rope should I use on my CL233 cleat?
Ans: The size of rope used on the CL233 is from 2 to 6mm 1/16 – 1/4”.
Q: What does port and starboard mean when talking about cleats?
Ans: Port is the left-hand side and starboard is the right-hand side. So, if used on a sail the port cleat will go on the left-hand surface of the sail and the starboard on the right-hand surface.
Q: What accessories can be used with the CL233?
Ans: There are backplates and rivets available if you are attaching the cleat to a sail.
Q: Can the Clamcleat® CL233 cleat be sewn or riveted onto the sail?
Ans: The Clamcleat® CL233 cleat can be sewn or riveted onto the sail and a backing plate and rivets are available, see details on this page.
Q: Why does Clamcleat® not publish safe working loads (SWL) or break loads for its cleats?
Ans: The quality, type and style of the rope or cord plays a major role in the performance of the cleat. Normally the better the quality of the rope the greater holding power, also some cleats are designed to slip once they exceed the desired holding load as a safety feature including securing fabrics such as sunshades or covers.
Q: Do you get a better performance with an Aluminum cleat?
Ans: Aluminum cleats do not improve the performance of the cleat, but they can achieve higher holding loads and they also might improve the lifespan of the cleat especially if the rope will be in contact with the teeth whilst the rope is being pulled through during adjustment.
Q: How long should a Nylon cleat last?
Ans: This really depends on the usage, the quality and age of the rope used etc. so is very difficult to gauge. The ultraviolet rays will discolor the cleats over time and in very sunny climates may affect the life of the cleat. In extreme climates the life expectancy should be 10 -15 years depending on usage and in more moderate climate 20 + years.
Q: What type of rope or cord will give the best performance on my cleats?
Ans: In our experience a braided good quality rope gives you the best holding performance.
Q: Is there any maintenance required to a cleat to keep it performing well?
Ans: We would recommend flushing the with fresh water as often are you can.
