CL234 Fender Cleat / Large Loop Cleat
A nylon cleat for tensioning ropes. Rig with 1:1 or 2:1 advantage.
| Technical Details | Metric | Imperial | |
|---|---|---|---|
| Rope Diameter |  |
6 - 12mm | 1/4 - 7/16" |
| Material |  |
Nylon | Nylon |
| Hole Centres |  |
n/a | n/a |
| Length |  |
78mm | 3 1/16" |
| Width |  |
24mm | 15/16" |
| Height |  |
47mm | 1 13/16 |
| Bolt Size |  |
n/a | n/a |
| Screw Size |  |
n/a | N/A |
| Weight |  |
45gms | 1.6oz |
Availability:
In stock
SKU
Clamcleat-CL234
The White Clamcleat® CL234W makes it simple to hang fenders. It is easy to adjust so your fenders are always positioned correctly. The cleat stays on the rope so nothing gets lost. There are no moving parts and it fits around all sizes of tube or wire.
Rigged on a rope with 2:1 advantage. The tooth design of the Clamcleat® CL234 allows a positive grip on the rope that is easy to release making it ideal for tensioning sports nets, radio masts, tents, canvas structures and fenders. It can be used for suspending curtains and tensioning banners in a theatre. The black CL234 is used on Physiotherapy equipment
Made from outdoor grade nylon. Completely corrosion proof. Availabe in 2 standard colours: CL234 is Black. CL234W is White. Packaged with instructions. Available in bulk for manufacturers.
A smaller version is the CL223 Loop cleat.

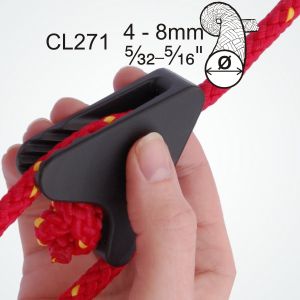

The CL271 is a similar size that rigs without a rope tail.
CL253 is an alloy cleat for higher loads.
Write Your Own Review
Q: What size of rope should I use on my CL234 cleat?
Ans: The size of rope used on the CL234 is from 6 to 11mm (1/4 – 7/16”).
Q: What is a loop cleat?
Ans: Clamcleat® make a 2 different sizes of loop cleat, CL223 for ropes from 3-6mm (1/8 – ¼”) and CL234 for ropes from 6-11mm (1/4 – 7/16”) the rope if fixed to the cleat and a loop is created in from the rope coming back through the teeth which allows you to adjust the size of the loop. Ideal for adjusting fender height.
Q: What colours are the CL234 available in?
Ans: The CL234 cleat is available in black CL234 and white CL234W.
Q: Why does Clamcleat® not publish safe working loads (SWL) or break loads for its cleats?
Ans: The quality, type and style of the rope or cord plays a major role in the performance of the cleat. Normally the better the quality of the rope the greater holding power, also some cleats are designed to slip once they exceed the desired holding load as a safety feature including securing fabrics such as sunshades or covers.
Q: How long should a Nylon cleat last?
Ans: This really depends on the usage, the quality and age of the rope used etc. so is very difficult to gauge. The ultraviolet rays will discolor the cleats over time and in very sunny climates may affect the life of the cleat. In extreme climates the life expectancy should be 10 -15 years depending on usage and in more moderate climate 20 + years.
Q: What type of rope or cord will give the best performance on my cleats?
Ans: In our experience a braided good quality rope gives you the best holding performance.
Q: Is there any maintenance required to a cleat to keep it performing well?
Ans: We would recommend flushing the with fresh water as often are you can.
