CL279 Cleat for underground recycling bags
Used for control rope on semi-buried recycling bag systems.
| Technical Details | Metric | Imperial | |
|---|---|---|---|
| Rope Diameter |  |
10mm | 3/8" |
| Material |  |
Nylon | Nylon |
| Hole Centres |  |
95mm | 3 3/4" |
| Length |  |
198mm | 7 13/16" |
| Width |  |
55mm | 2 3/16" |
| Height |  |
cleat 46mm | cleat 1 13/16 |
| Bolt Size |  |
M6 | 7/32" |
| Screw Size |  |
N/A | N/A |
| Weight |  |
cleat 160gms | cleat 5.6oz |
Availability:
In stock
SKU
Clamcleat-CL279

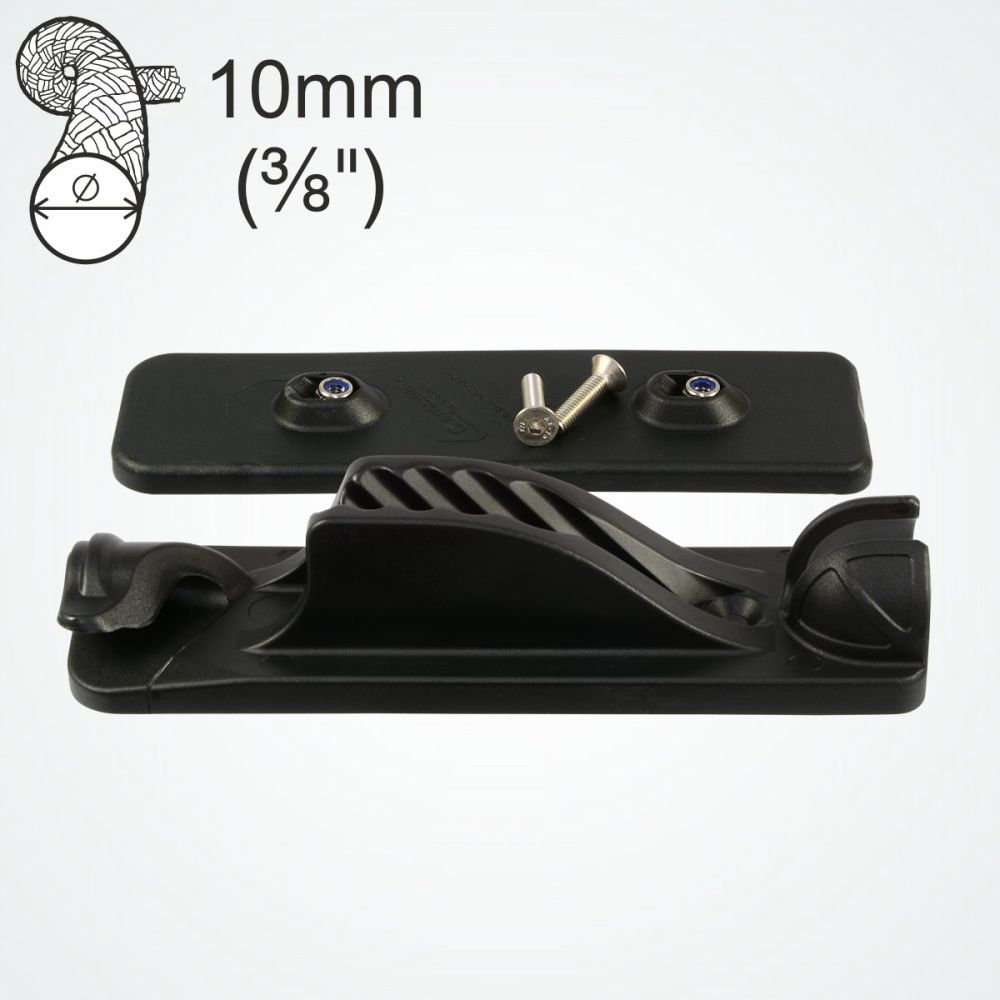

The Clamcleat® CL279 is used to tension the control rope on semi-buried recycling bag systems. Also known as deep collection containers. Supplied complete with backplate and stainless steel M6 fastenings. The nyloc nuts are pre-installed in the backplate to make assembly easy. Once assembled, the fabric of the bag is firmly gripped between the cleat base and backplate. The socket at the bottom of the CL279 holds the top end of the tube. A clip at the top holds the tail end of the rope. See the [Downloads] tab for technical information and leaflets.

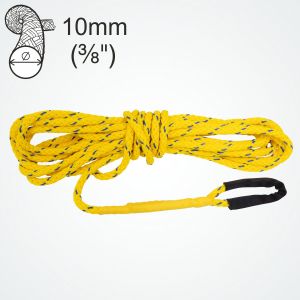

For the complete bag closure system, use CL279 with our PT406 loops and PT414-9 rope. You have a choice of tubes:-
PT413-1 tube for lighter bags.
PT416-1 heavy duty, corrosion proof tube.
PT417-1 very heavy duty tube that can be used as a handle.
Write Your Own Review
Q: What size of rope can you use on the CL279?
Ans: The CL279 will accept ropes from 10mm which include part no. PT414-9.
Q: Does Clamcleat® make products for semi-buried recycling bag systems or deep collection containers?
Ans: There is a range of products made by Clamcleat® for recycling bag systems which include CL279 cleat, PT406 loops, PT414-9 rope, PT413-1 tube assembly, PT416-1 tube assembly and PT417-1 tube assembly.
