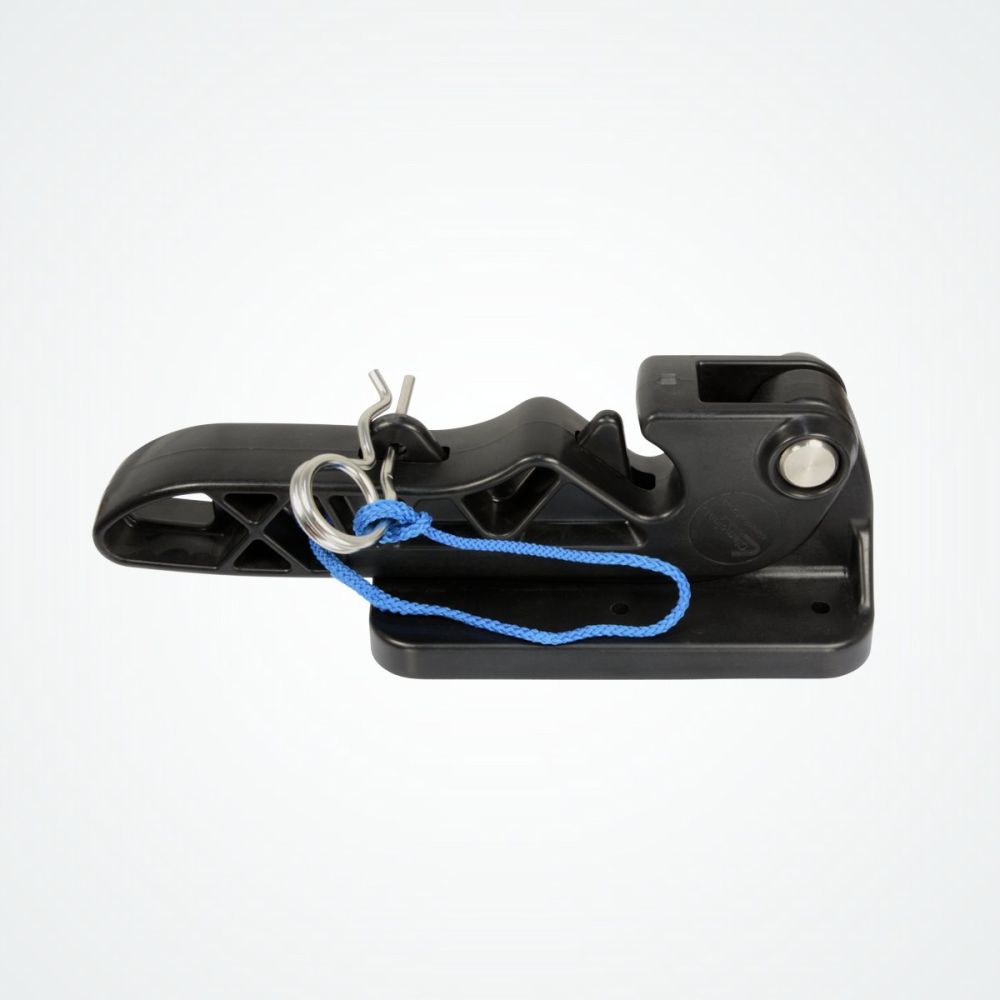

PT418 Clamp for semi-buried rubbish containers
Containers have a solid lid at the bottom. The PT418 will help to allow lid to fall open.
| Technical Details | Metric | Imperial | |
|---|---|---|---|
| Rope Diameter |  |
10mm | 3/8" |
| Material |  |
Nylon | Nylon |
| Hole Centres |  |
71mm | 2 13/16" |
| Length |  |
280mm | 11" |
| Width |  |
101mm | 3 31/32" |
| Height |  |
93mm | 3 11/16 |
| Bolt Size |  |
M6 | 1/4" |
| Screw Size |  |
n/a | N/A |
| Weight |  |
730gms | 1lb 10oz |
Availability:
In stock
SKU
Clamcleat-PT418
For use on recycling and refuse containers that have a hinged solid lid at the bottom. The Clamcleat® PT418 helps to hold the lid firmly closed. Removing the safety pin and pulling on the release rope allows the lid to fall open.
See the [Downloads] tab for leaflets and technical details. If you are machining the fixing holes, we have a DXF file available. Please Contact Us.
Our PT414-9 rope is an ideal release rope for PT418 Clamp. Tie the rope onto handle of PT418 clamp so you can pull the handle from a distance. To make easier for the operator to hold the rope, either - 1: Tie a figure-of-8-knots along the rope, or 2: Tie a "handle" in the rope.
For flexible bags, that are tied at the bottom, see CL279 cleat for holding the closing rope.
Write Your Own Review
Q: Do Clamcleat® make a clamp for bottom lid on recycling bags?
Ans: The PT418 is designed as a clamp for the bottom lid on recycling bags.
Q: Does Clamcleat® make products for semi-buried recycling bag systems or deep collection containers?
Ans: There is a range of products made by Clamcleat® for recycling bag systems which include CL279 cleat, PT406 loops, PT414-9 rope, PT413-1 tube assembly, PT416-1 tube assembly and PT417-1 tube assembly.
