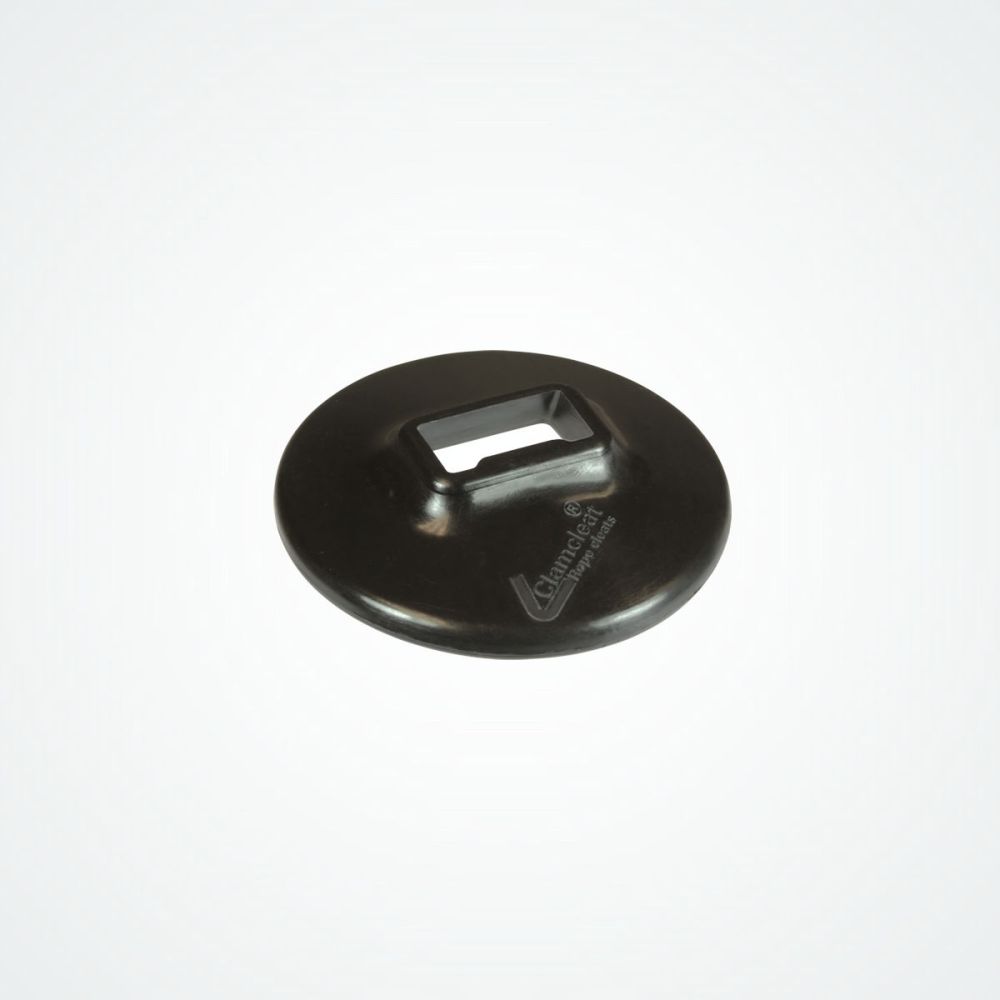

CL834 Handle for CL253 Trapeze cleat
Designed for a perfect fit on the CL253 trapeze cleat
| Technical Details | Metric | Imperial | |
|---|---|---|---|
| Rope Diameter |  |
N/Amm | N/A" |
| Material |  |
Nylon | Nylon |
| Hole Centres |  |
n/a | n/a |
| Length |  |
51mm | 2" |
| Width |  |
51mm | 2" |
| Height |  |
12mm | 1/2 |
| Bolt Size |  |
n/a | n/a |
| Screw Size |  |
n/a | N/A |
| Weight |  |
8gms | 0.2oz |
Availability:
In stock
SKU
Clamcleat-CL834
Designed for a perfect fit on the Clamcleat® CL253 trapeze cleat. The CL834 Trapeze Handle is light weight, just the right size and very comfortable to use. Fits the silver CL253 and hard anodised CL253AN.
Developed in conjunction with the racing specialists, Shock Sailing, shocksailing.com The photo shows that the designers daughter really trusts her fathers work. A nice pic by Martin Allen
Always fit the CL834 Trapeze Handle onto the Clamcleat® CL253 trapeze cleat before you fit the rope or wire. Also, using a PTLINK on the CL253 makes releasing the rope a lot easier.
Write Your Own Review
Q: What Clamcleat® cleat can be used for a trapeze cleat?
Ans: The CL253 and CL230 cleats can be used as trapeze cleats.
Q: What is a roller cleat?
Ans: A roller cleat has an internal sheave within the cleat which allows the rope to enter the cleat from more obtuse angles from above or below the cleat.
Q: What size of rope can you use on the CL253?
Ans: The CL253 will accept ropes from 4-8mm.
Q: What accessories can be used with the CL253?
Ans: The CL834 trapeze cleat handle and the PT230SSE stainless steel eye can be used with the CL253 trapeze cleat.
Q: What power ration can be used with the Clamcleat® CL253 cleat?
Ans: The CL253 cleat can be used with a 1:1 or 2:1 power ratio.
Q: Why does Clamcleat® not publish safe working loads (SWL) or break loads for its cleats?
Ans: The quality, type and style of the rope or cord plays a major role in the performance of the cleat. Normally the better the quality of the rope the greater holding power, also some cleats are designed to slip once they exceed the desired holding load as a safety feature including securing fabrics such as sunshades or covers.
Q: Do you get a better performance with an Aluminum cleat?
Ans: Aluminum cleats do not improve the performance of the cleat, but they can achieve higher holding loads and they also might improve the lifespan of the cleat especially if the rope will be in contact with the teeth whilst the rope is being pulled through during adjustment.
Q: What different coating are there for the Aluminum cleats?
Ans: The standard coating for the cleat is a Stoving Aluminum silver enamel coating. For extra protection from corrosion and a high-tech appearance the cleats are also available in a dark grey Hard anodized finish. The part no in suffixed with “AN” to identify the hard anodized finish.
Q: How long should an Aluminum cleat last?
Ans: This really depends on the usage, the quality and age of the rope used etc. so is very difficult to gauge. The ultraviolet rays will discolor the cleats over time and in very sunny climates may affect the life of the cleat. In extreme climates the life expectancy should be 10 -15 years depending on usage and in more moderate climate 20 + years.
Q: What type of rope or cord will give the best performance on my cleats?
Ans: In our experience a braided good quality rope gives you the best holding performance.
Q: Is there any maintenance required to a cleat to keep it performing well?
Ans: We would recommend flushing the with fresh water as often are you can.
