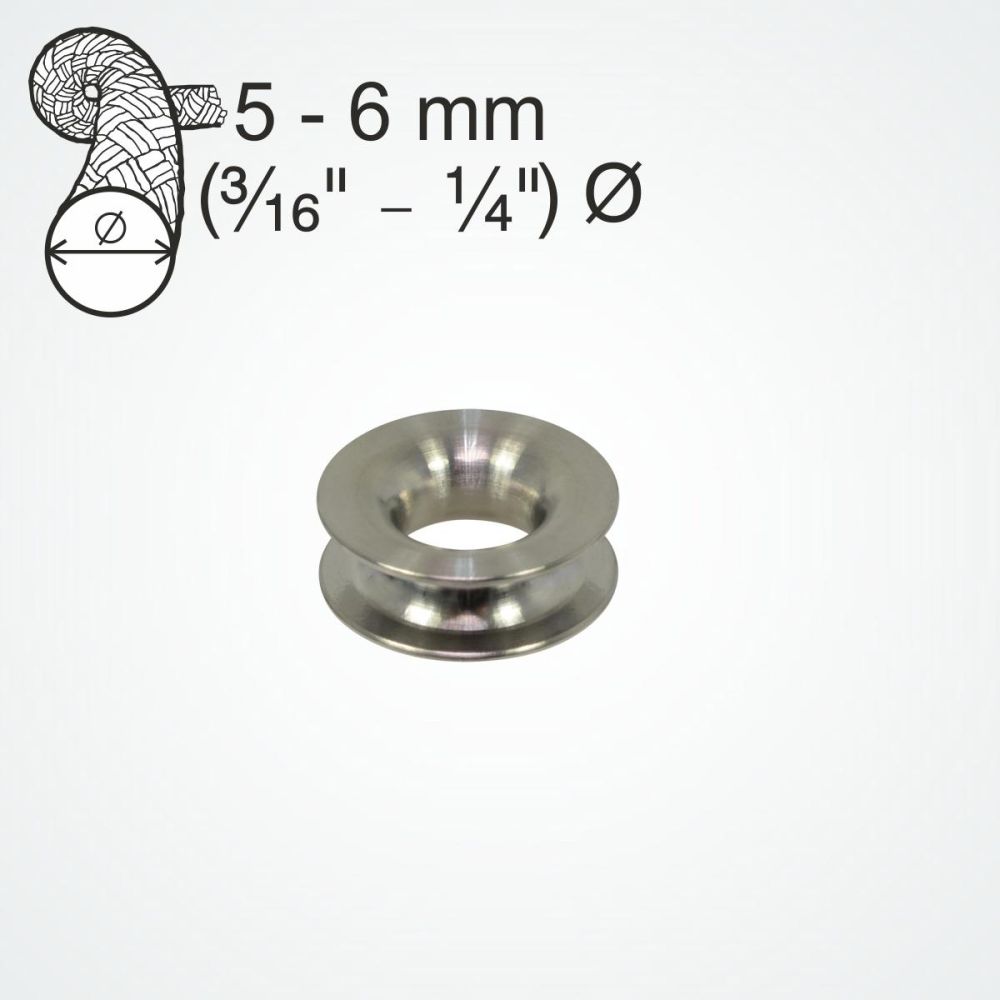

PT5110 Titanium thimble for 5-6mm ropes
PT5110 solid titanium thimble ideal for 5-6mm ropes. Ideal for high load racing applications.
| Technical Details | Metric | Imperial | |
|---|---|---|---|
| Rope Diameter |  |
5-6mm | 3/16 - 1/4" |
| Material |  |
Titanium | Titanium |
| Hole Centres |  |
n/a | n/a |
| Length |  |
23mm | 29/32" |
| Width |  |
23mm | 29/32" |
| Height |  |
8mm | 5/16 |
| Bolt Size |  |
n/a | n/a |
| Screw Size |  |
n/a | N/A |
| Weight |  |
4.5gms | 0.16oz |
Availability:
In stock
SKU
Clamcleat-PT5110
Clamcleat® PT5110 solid titanium thimble for 5-6mm ropes. Light weight and very strong. Abrasion resistant and corrosion proof. Ideal for high load racing applications. Use with all types of fibre or steel wire ropes.
Use instead of pulley blocks for rigging sailboat Lazy Jacks. Also ideal for light weight cascades. Easily spliced on the end of a rope. Can be fitted to tubes using a rope strop. The PT5110 can make a lightweight rig with 4:1 advantage, using either the CL826-11/S2 or CL827-04 cleats.
There is one smaller size:-
PT5107 for 3-4mm ropes.
Plus 2 larger sizes:-
PT5115 for 7-8mm ropes.
PT5120 for 12-13mm ropes.
Write Your Own Review
Q: What rope size can the Clamcleat® PT5110 Titanium thimble take?
Ans: The Clamcleat® Titanium thimbles PT5110 is for 5-6mm rope and a SWL = 800Kgs.
Q: What loads can the Clamcleat® PT5110 Titanium thimble take?
Ans: The Clamcleat® Titanium thimbles PT5110 for 5-6mm SWL = 800Kgs.
Q: Does Clamcleat® make HLE or Titanium thimbles?
Ans: Clamcleat® make a range of Titanium thimbles PT5107 for 3-4mm, PT5110 for 5-6mm, PT5115 for 7-8mm and PT5120 for 12-13mm rope.
Q: What loads can the Clamcleat® Titanium thimble take?
Ans: Clamcleat® make a range of Titanium thimbles PT5107 for 3-4mm SWL = 400Kgs, PT5110 for 5-6mm SWL = 800Kgs, PT5115 for 7-8mm SWL = 1500Kgs and PT5120 for 12-13mm SWL 3000Kgs.
Q: Why does Clamcleat® not publish safe working loads (SWL) or break loads for its cleats?
Ans: The quality, type and style of the rope or cord plays a major role in the performance of the cleat. Normally the better the quality of the rope the greater holding power, also some cleats are designed to slip once they exceed the desired holding load as a safety feature including securing fabrics such as sunshades or covers.
Q: Is there any maintenance required to a cleat to keep it performing well?
Ans: We would recommend flushing the with fresh water as often are you can.
