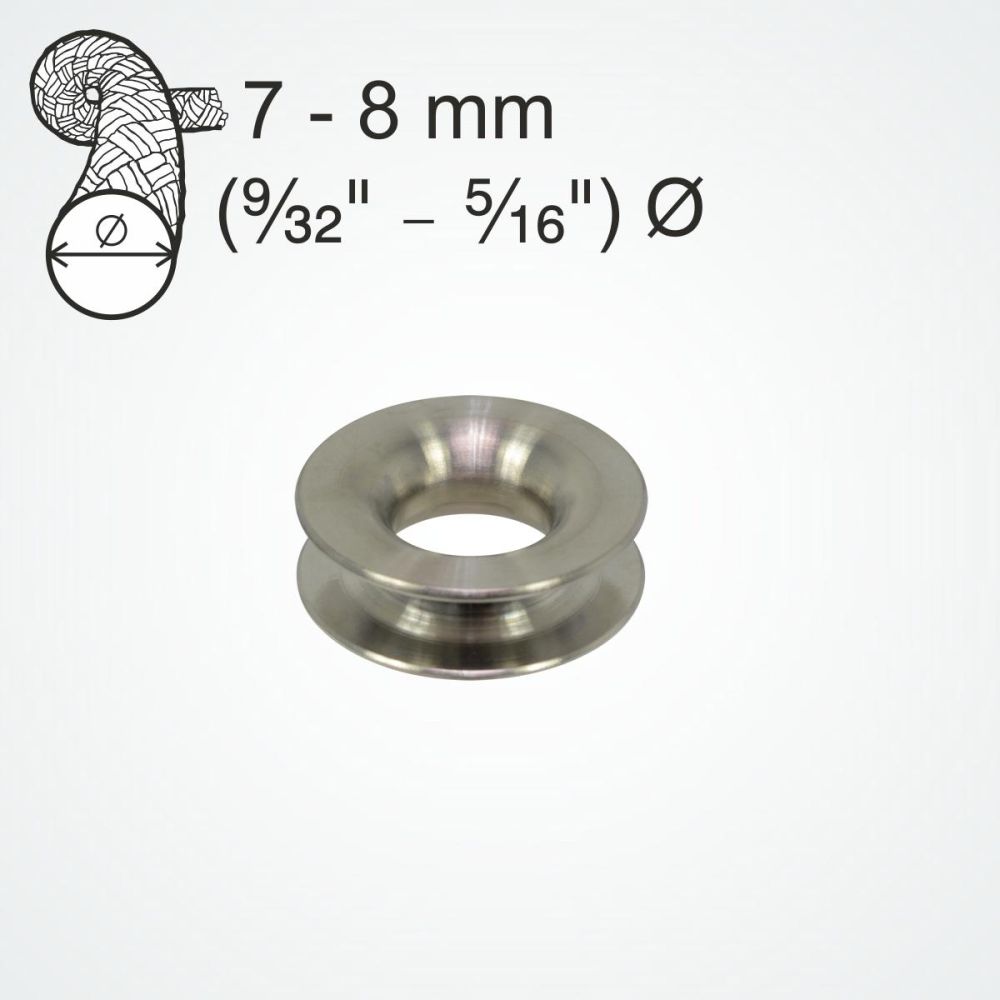

PT5115 Titanium thimble for 7-8mm ropes
Solid titanium thimble ideal for 7-8mm ropes. Ideal for high load racing applications.
| Technical Details | Metric | Imperial | |
|---|---|---|---|
| Rope Diameter |  |
7-8mm | 9/32 - 5/16" |
| Material |  |
Titanium | Titanium |
| Hole Centres |  |
n/a | n/a |
| Length |  |
n/a | n/a |
| Width |  |
34mm | 1-11/32" |
| Height |  |
11mm | 7/16 |
| Bolt Size |  |
n/a | n/a |
| Screw Size |  |
n/a | N/A |
| Weight |  |
14gms | 0.5oz |
Availability:
In stock
SKU
Clamcleat-PT5115
A solid titanium thimble ring designed for 7-8mm ropes. Very low weight and excellent corrosion resistance. The Clamcleat® PT5115 is ideal for high load racing applications. It is suitable for use with all types of fibre or steel wire ropes.
These titanium thimble rings can be spliced on the end of a rope, used for strops and knotted onto stanchions. They make an ideal low weight cascade system.
There are 2 smaller sizes of titanium thimble rings:-
PT5107 for 3-4mm ropes.
PT5110 for 5-6mm ropes.
Plus one larger size:-
PT5120 for 12-13mm ropes.
Write Your Own Review
Q: What rope size can the Clamcleat® PT5115 Titanium thimble take?
Ans: The Clamcleat® Titanium thimbles PT5115 is for 7-8mm rope and a SWL = 1,500Kgs.
Q: What loads can the Clamcleat® PT5115 Titanium thimble take?
Ans: The Clamcleat® Titanium thimbles PT5115 for 7-8mm SWL = 1,500Kgs.
Q: Does Clamcleat® make HLE or Titanium thimbles?
Ans: Clamcleat® make a range of Titanium thimbles PT5107 for 3-4mm, PT5110 for 5-6mm, PT5115 for 7-8mm and PT5120 for 12-13mm rope.
Q: What loads can the Clamcleat® Titanium thimble take?
Ans: Clamcleat® make a range of Titanium thimbles PT5107 for 3-4mm SWL = 400Kgs, PT5110 for 5-6mm SWL = 800Kgs, PT5115 for 7-8mm SWL = 1500Kgs and PT5120 for 12-13mm SWL 3000Kgs.
Q: Is there any maintenance required to a cleat to keep it performing well?
Ans: We would recommend flushing the with fresh water as often are you can.
Q: Why does Clamcleat® not publish safe working loads (SWL) or break loads for its cleats?
Ans: The quality, type and style of the rope or cord plays a major role in the performance of the cleat. Normally the better the quality of the rope the greater holding power, also some cleats are designed to slip once they exceed the desired holding load as a safety feature including securing fabrics such as sunshades or covers.
