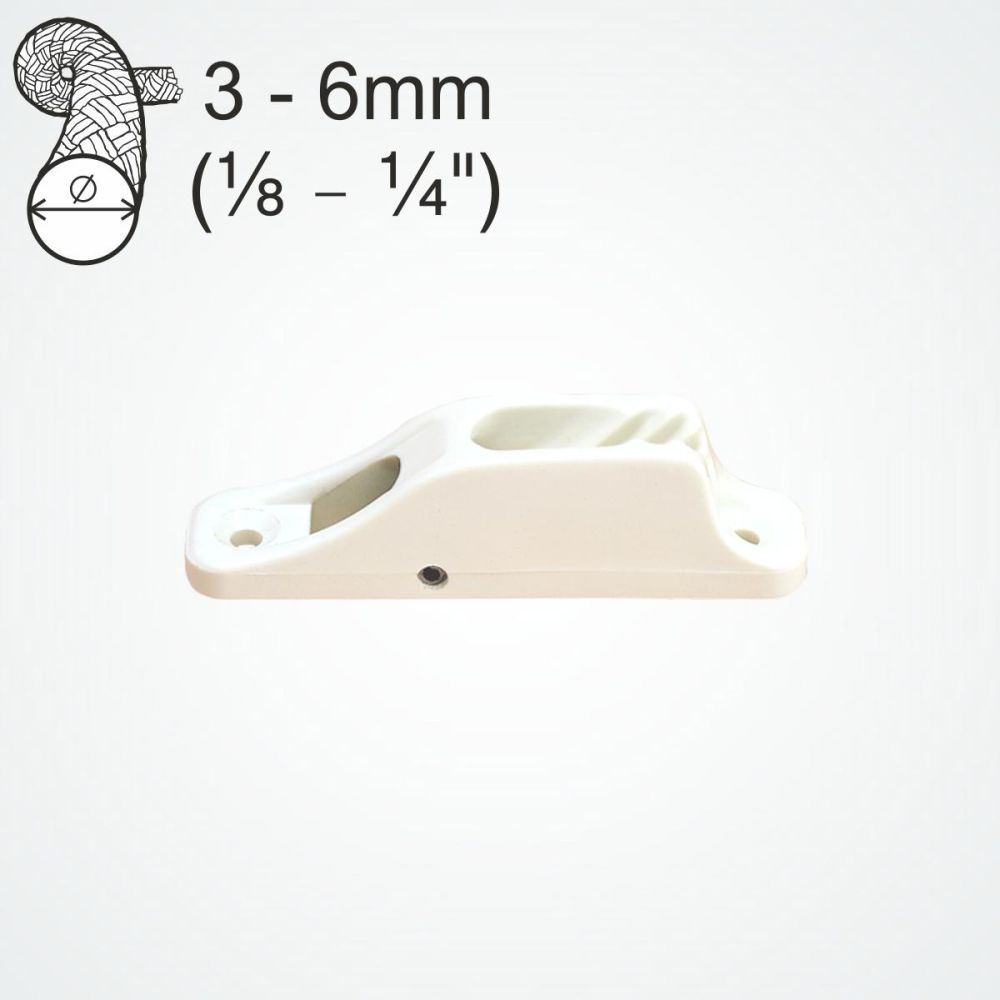

CL203W/S2 White Junior with Bottom Roller
Bottom roller allows rope to enter from below.
| Technical Details | Metric | Imperial | |
|---|---|---|---|
| Rope Diameter |  |
3 - 6mm | 1/8 - 1/4" |
| Material |  |
Nylon | Nylon |
| Hole Centres |  |
66mm | 2 5/8" |
| Length |  |
82mm | 3 1/4" |
| Width |  |
18mm | 23/32" |
| Height |  |
23mm | 29/32 |
| Bolt Size |  |
M4 | #8-32. 5/32" |
| Screw Size |  |
4.2 | No 8 |
| Weight |  |
17gms | 0.6oz |
Availability:
In stock
SKU
Clamcleat-CL203W/S2
The bottom roller allows the rope to enter the cleat from below.The CL824 Riser Pad can be used to raise the cleat.
CL203W/S2 can also be rigged on a rope, using 4-5mm (5/32-3/16") rope. Perfect for light loads.
The alloy version of this cleat is CL230 which should be used for higher loads.
A special version of the Keeper CL814/S1 will keep the rope in or out of the cleat teeth.
A version with roller fairlead is CL203W/S1.
CL203 is this nylon cleat without any rollers.
Write Your Own Review
Q: What size of rope should I use on my CL203W/S2 cleat?
Ans: The size of rope used on the CL203W/S2 is from 3 to 6mm (1/8 – ¼”).
Q: What is a roller cleat?
Ans: A roller cleat has an internal sheave within the cleat which allows the rope to enter the cleat from more obtuse angles from above or below the cleat.
Q: What fixing do I need to secure the Clamcleat® CL203W/S2 Cleat?
Ans: The fixing for a CL203W/S2 cleat is M5 CSK or 4.8mm no 10 woodscrews.
Q: What are the hole centers for securing the Clamcleat® CL203W/S2 Cleat?
Ans: The hole centers for the CL203W/S2 cleat are 66mm 2 5/8”.
Q: Is CL203W/S2 available in aluminum?
Ans: The aluminum version of the CL203W/S2 is the CL230.
Q: Why does Clamcleat® not publish safe working loads (SWL) or break loads for its cleats?
Ans: The quality, type and style of the rope or cord plays a major role in the performance of the cleat. Normally the better the quality of the rope the greater holding power, also some cleats are designed to slip once they exceed the desired holding load as a safety feature including securing fabrics such as sunshades or covers.
Q: How long should a Nylon cleat last?
Ans: This really depends on the usage, the quality and age of the rope used etc. so is very difficult to gauge. The ultraviolet rays will discolor the cleats over time and in very sunny climates may affect the life of the cleat. In extreme climates the life expectancy should be 10 -15 years depending on usage and in more moderate climate 20 + years.
Q: Can I fit my cleats using pop rivets?
Ans: Using pop rivets to fit your cleat is a tidy quick way of securing the cleat. Ensure the pop rivet is at 90 degrees to the cleat when fixing and with certain smaller cleats the head of the pop rivet gun will not sit onto the pop rivet when in place so you will require to add a spacer between the gun and the rivet.
Q: What type of rope or cord will give the best performance on my cleats?
Ans: In our experience a braided good quality rope gives you the best holding performance.
Q: Is there any maintenance required to a cleat to keep it performing well?
Ans: We would recommend flushing the with fresh water as often are you can.
