CL111 Boom clamp, for CL244 cleat

Be the first to review this product

Clamp holds CL244 cleat onto booms & tubes.

Technical Details	Metric	Imperial
Rope Diameter	n/a	n/a
Material	Nylon	Nylon
Hole Centres	n/a	n/a
Length	58mm	2 1/4"
Width	n/a	n/a
Height	n/a	n/a
Bolt Size	n/a	n/a
Screw Size	4.2mm	No 8
Weight	16gms	0.57oz

Availability:

In stock

SKU

Clamcleat-CL111

Details

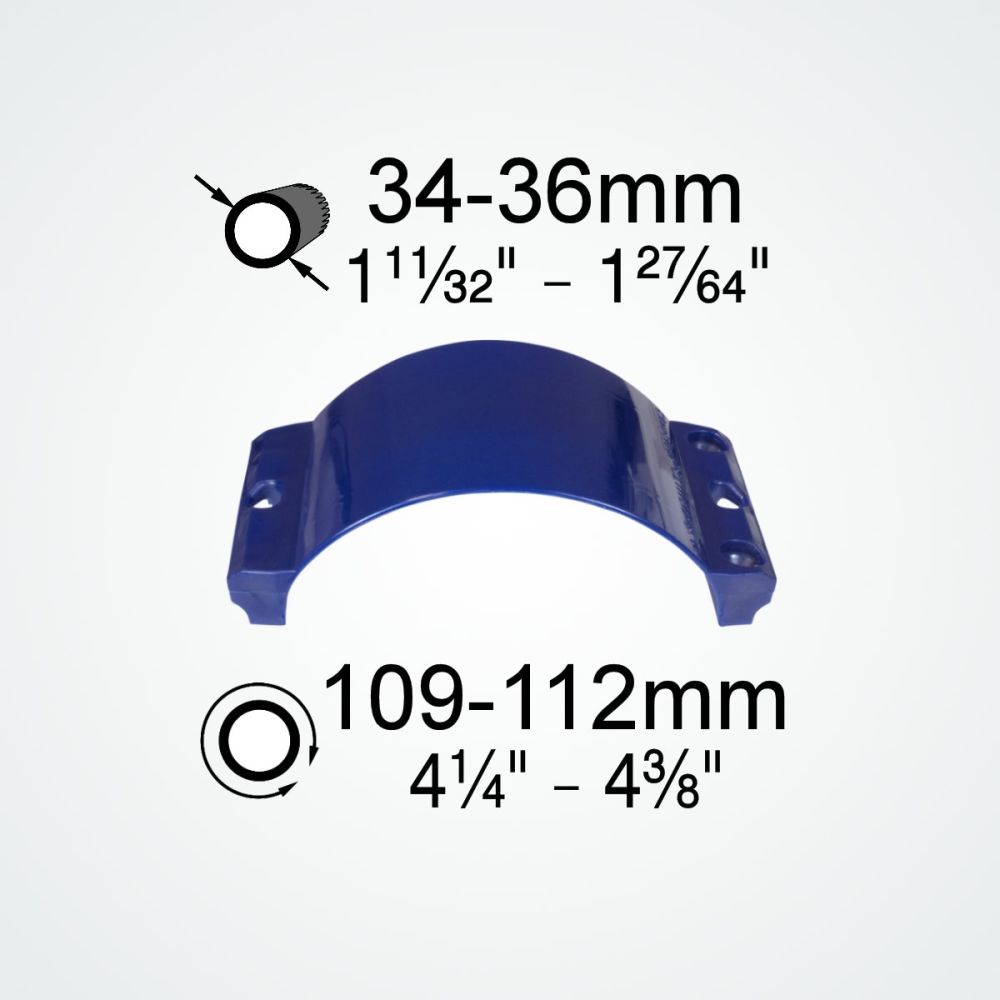

The CL111 Clamp holds a Clamcleat® CL244 cleat onto booms & tubes. These clamps are designed to be used with rubber between the clamp and a metal or carbon tube. They can be fitted over smaller tubes by using more rubber. The CL111 was originally designed for windsurf booms 109 - 112mm circumference over neoprene. It also fits tubes with diameter 34-36mm (1 11/32" - 1 27/64"), such as aluminium or carbon fibre. Screws and rubber packing pieces are also available if required - please contact us. For manufacturers, the CL111 is avialable in different colours. Please contact us

The CL111 is one of 4 sizes of clamp available
- CL077 fits 24-27mm (1") diameter tubes.
- CL105 fits 30-33mm diameter tubes.
- CL115 fits 36-37mm diameter tubes.
- CL134 fits 42-43mm diameter tubes.
CL244L is the cleat that fits into all these clamps.
Our Retail Pack, CL244/R, contains cleat, 2 sizes of clamp, rubber packing peice and 2 screws, with fitting instructions.

Reviews

Write Your Own Review

Downloads

Video

Q: Does Clamcleat® make different sizes of clamp for the CL244 cleat?

Ans: Clamcleat® make a range of clamps which rap around tubing to hold the CL244 cleat. CL105 = 30-32mm (1 1/8 – 1 ¼”).CL111 = 32-35mm (1 ¼-1 3/8”), CL115 = 35-37mm (1 3/8- 1 7/16) and CL134 = 42-43mm (1 11/16”).

Q: Does Clamcleat® supply rubber pads with the clamps to fit more diameter tubes?

Ans: Clamcleat® supply rubber pads for the smaller tubes, add more pads on smaller tubes to ensure a tight fit. CL105 = 30-32mm (1 1/8 – 1 ¼”).CL111 = 32-35mm (1 ¼-1 3/8”), CL115 = 35-37mm (1 3/8- 1 7/16) and CL134 = 42-43mm (1 11/16”).
