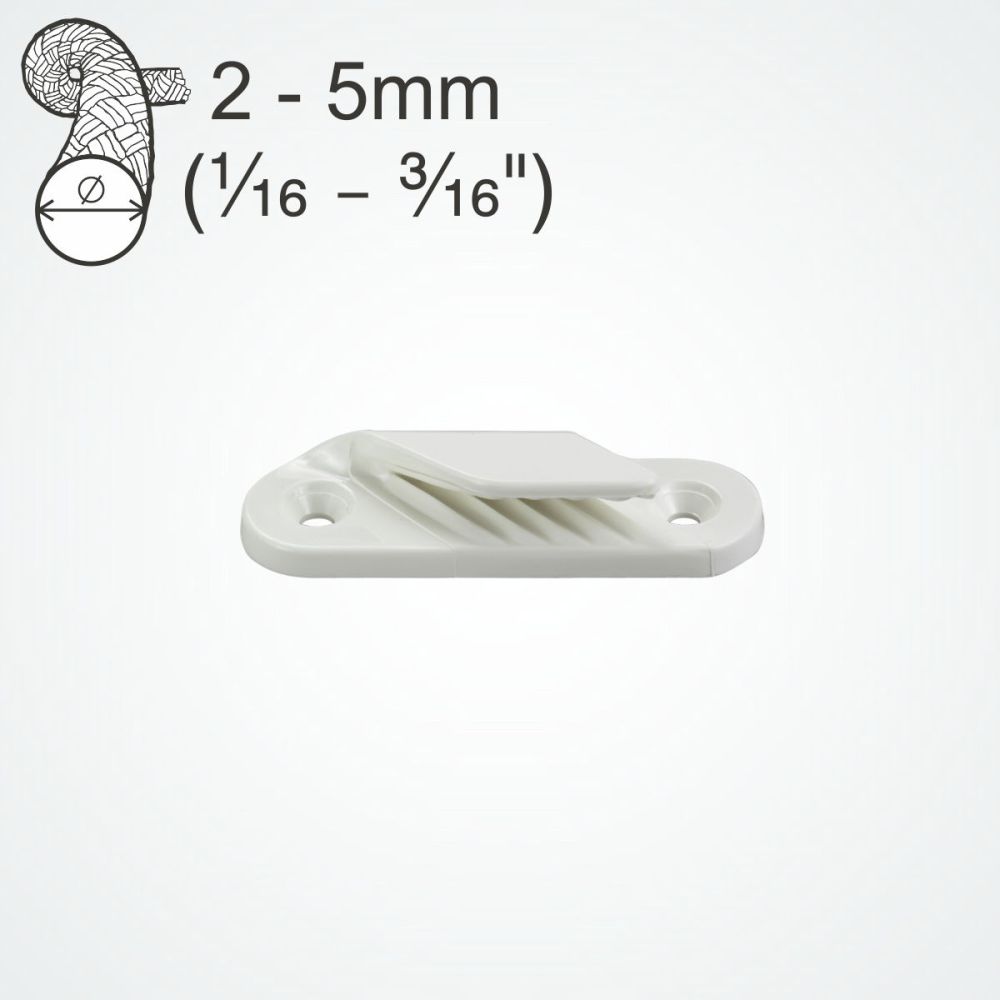

CL214W Leech Line Cleat
Low profile white nylon cleat , for sewing or riveting onto sails
| Technical Details | Metric | Imperial | |
|---|---|---|---|
| Rope Diameter |  |
2 - 5mm | 1/16 - 3/16" |
| Material |  |
Nylon | Nylon |
| Hole Centres |  |
49mm | 1 15/16" |
| Length |  |
70mm | 2 3/4" |
| Width |  |
21mm | 13/16" |
| Height |  |
13mm | 1/2 |
| Bolt Size |  |
N/A | N/A |
| Screw Size |  |
N/A | No 8 |
| Weight |  |
9gms | 0.3oz |
Availability:
In stock
SKU
Clamcleat-CL214W
Clamcleat® CL214W Leech Line Cleat is a low profile white nylon cleat, for sewing or riveting onto sails, canvas, webbing and technical fabrics. It can be mounted in two positions on sails. The tooth design allows a quick, positive lock that is easy to release, added to its low profile it is an ideal cleat for adjusting leech lines.
The CL214W is usually ftted to the Starboard side of a sail, when used for tensioning leech lines. See the fitting diagrams above.
The aluminium version of this cleat is the CL259. See below.
If you require a cleat for the other side of a sail please look at the CL212.
Use a backplate when riveting a cleat onto fabric as it will prevent the rivet pulling through.
If you are looking for a sail cleat with built-in fairlead, see the nylon CL283. An alloy version is the CL273.
Write Your Own Review
Q: Is CL214W available in aluminum?
Ans: The aluminum version of the CL214W is the CL259.
Q: What size of rope can you use on the CL214W?
Ans: The CL214W will accept ropes from 2-5mm (1/16-3/16”)
Q: Does Clamcleat® make a starboard version of the CL214W?
Ans: Clamcleat® starboard version of the CL214W is CL213.
Q: Does Clamcleat® make products for fitting to a sail?
Ans: Clamcleat® make a range of products suitable for fitting to sails both port and starboard side. The cleats are suitable for ropes from 0 to 6mm and are available in Nylon and Aluminum.
Q: Does Clamcleat® make a Leech cleat?
Ans: Clamcleat® make a range of Leech cleats for fitting to sails both port and starboard side. The cleats include CL212, CL214, CL221, CL273 and CL281.
Q: Does Clamcleat® make a sail edge cleat?
Ans: Clamcleat® make 2 different sizes of sail edge cleat CL267 and CL269.
Q: How do you secure a cleat to a sail?
Ans: Clamcleat® has two options for securing the sail cleat to the sail which are Sewn and rivetted. Backing plates and rivets are available.
