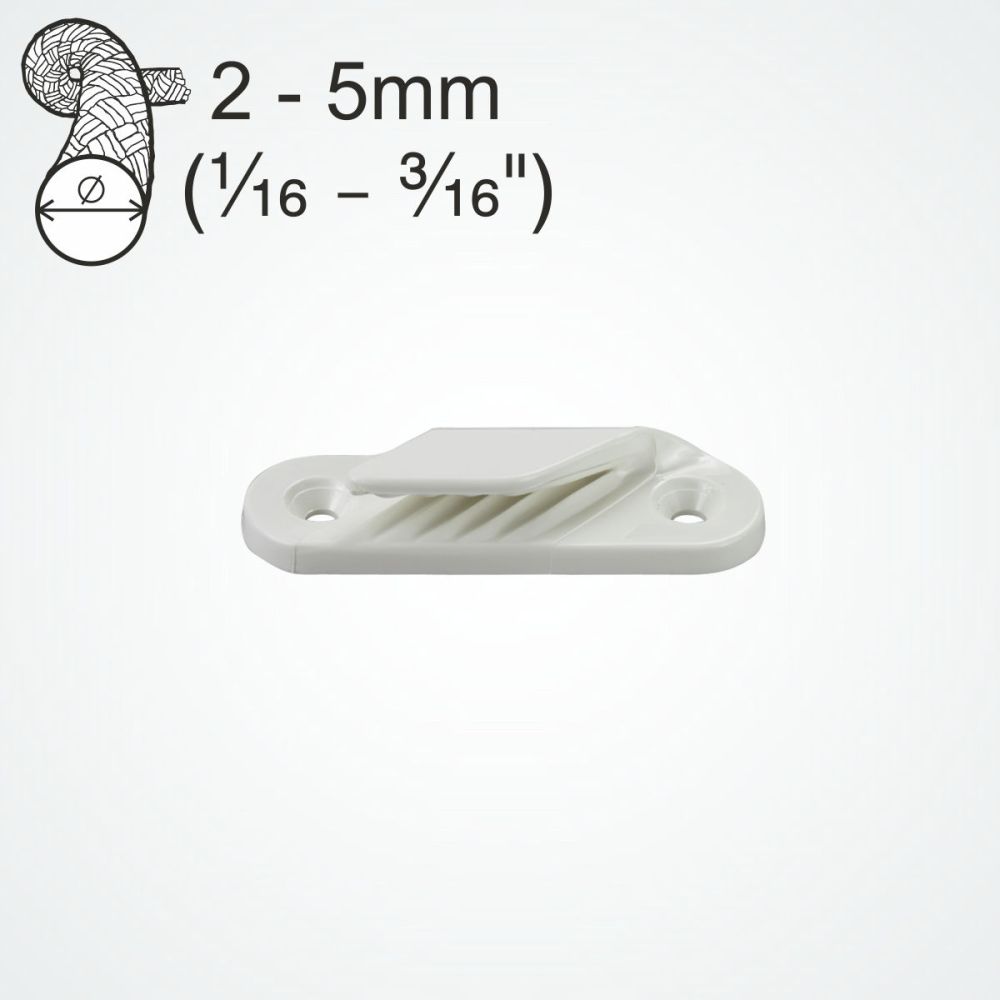

CL212 - Leech Line Cleat
Low profile white nylon cleat , for sewing or riveting onto sails.
| Technical Details | Metric | Imperial | |
|---|---|---|---|
| Rope Diameter |  |
2 - 5mm | 1/16 - 3/16" |
| Material |  |
Nylon | Nylon |
| Hole Centres |  |
49mm | 1 15/16" |
| Length |  |
70mm | 2 3/4" |
| Width |  |
21mm | 13/16" |
| Height |  |
13mm | 1/2 |
| Bolt Size |  |
M4 | #8-32. 5/32" |
| Screw Size |  |
4.2 | No 8 |
| Weight |  |
9gms | 0.3oz |
Availability:
In stock
SKU
Clamcleat-CL212
The Clamcleat® CL212 Leech Line Cleat is a low profile white nylon cleat, for sewing or riveting onto sails and technical fabrics. Can also be used on flag poles and tubes. It can be mounted in two positions on the sail. The tooth design allows a quick, positive lock that is easy to release, added to its low profile it is an ideal cleat for adjusting leech lines.
The CL212 is usually ftted to the Port side of a sail, when used for tensioning leech lines. See the fitting diagrams above.
Use CL212BP backplate when riveting CL212 onto fabric as it will prevent the rivet pulling through.
CL212A is a shield for the CL212, to keep the rope close to the cleat.
The aluminium version of this cleat is the the CL258.
If you require a cleat for the other side of a sail, look at the CL214W.
A similar nylon sail cleat, with a fairlead, is the CL281.
CL241 is the aluminium version of CL281.
Write Your Own Review
Q: Is CL212 available in aluminum?
Ans: The aluminum version of the CL212 is the CL258.
Q: What size of rope can you use on the CL212?
Ans: The CL212 will accept ropes from 2-5mm (1/16-3/16”)
Q: Does Clamcleat® make a port version of the CL212?
Ans: Clamcleat® starboard version of the CL212 is CL214.
Q: Does Clamcleat® make products for fitting to a sail?
Ans: Clamcleat® make a range of products suitable for fitting to sails both port and starboard side. The cleats are suitable for ropes from 0 to 6mm and are available in Nylon and Aluminum.
Q: Does Clamcleat® make a Leech cleat?
Ans: Clamcleat® make a range of Leech cleats for fitting to sails both port and starboard side. The cleats include CL212, CL214, CL221, CL273 and CL281.
Q: Does Clamcleat® make a sail edge cleat?
Ans: Clamcleat® make 2 different sizes of sail edge cleat CL267 and CL269.
Q: How do you secure a cleat to a sail?
Ans: Clamcleat® has two options for securing the sail cleat to the sail which are Sewn and rivetted. Backing plates and rivets are available.
