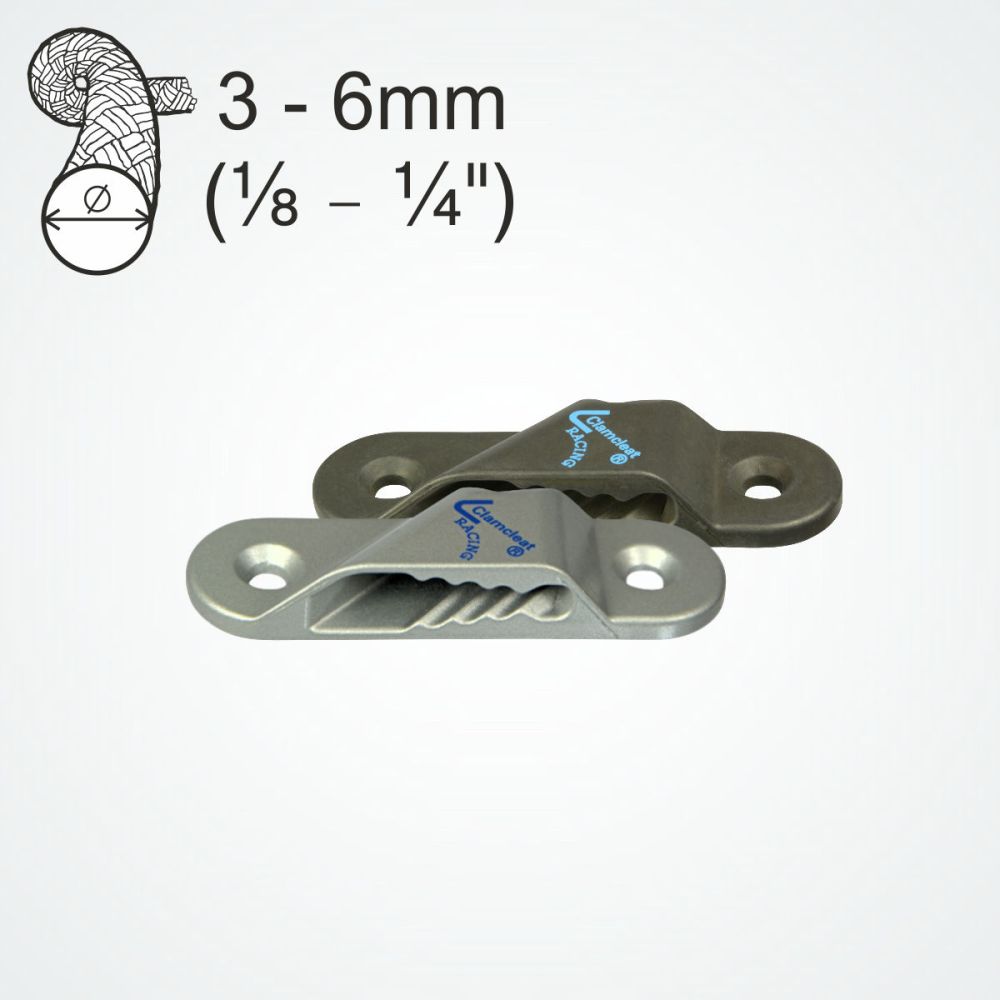

CL241 Racing Sail Line Cleat (Port)
Alloy sail cleat with integrated fairlead. Sew or rivet to sail.
| Technical Details | Metric | Imperial | |
|---|---|---|---|
| Rope Diameter |  |
3 - 6mm | 1/8 - 1/4" |
| Material |  |
Aluminium | Aluminium |
| Hole Centres |  |
49mm | 1 15/16" |
| Length |  |
70mm | 2 3/4" |
| Width |  |
21mm | 13/16" |
| Height |  |
12mm | 1/2 |
| Bolt Size |  |
M4 | #8-32. 5/32" |
| Screw Size |  |
4.2 | No 8 |
| Weight |  |
16gms | 0.6oz |
Availability:
In stock
SKU
Clamcleat-CL241
The tooth design of the CL241 Racing Sail Line Cleat (Port) allows a quick, positive lock that is easy to release. Add to this its low profile and ability to hold high loads, makes it ideal for tensioning leech lines on larger sails, as well as luff lines on smaller sails. The integrated rope guide also make it suitable for adjusting & securing reefing points. The CL241 is also use as a low profile deck cleat and for tensioning trampolenes on dinghies and catamarans. Manufactured from aluminium for light weight and durable performance it can be mounted in two positions.
The CL241 has a silver stove enamel finish for a cost effective, high quality finish.
The CL241AN has a hard anodised finish to give the ultimate hard wearing surface.
CL273 is the Starboard version of this cleat.
CL281 is the nylon equivalent version of this cleat, for lower loads.
Use a backplate when riveting a cleat onto sails or technical fabrics as it will prevent the rivet pulling through. (Note that alloy cleats should be sewn onto carbon fibre sails, to avoid corrosion.)
For silver CL241, use the white CL212BP backplate.
For the Hard Anodised CL241AN, use a black CL212BP-B backplate.
For cleats without fairleads, look at the alloy CL258
and the nylon CL212
The nylon CL233 works in a similar way to the CL241, but has a triangular shape.
Write Your Own Review
Q: What size of rope should I use on my CL241 cleat?
Ans: The size of rope used on the CL241 is from 3 to 6mm (1/8 – ¼”).
Q: Does Clamcleat® make products for fitting to a sail?
Ans: Clamcleat® make a range of products suitable for fitting to sails both port and starboard side. The cleats are suitable for ropes from 0 to 6mm and are available in Nylon and Aluminum.
Q: Does Clamcleat® make a Leech cleat?
Ans: Clamcleat® make a range of Leech cleats for fitting to sails both port and starboard side. The cleats include CL212, CL214, CL221, CL273 and CL281.
Q: Does Clamcleat® make a sail edge cleat?
Ans: Clamcleat® make 2 different sizes of sail edge cleat CL267 and CL269.
Q: How do you secure a cleat to a sail?
Ans: Clamcleat® has two options for securing the sail cleat to the sail which are Sewn and rivetted. Backing plates and rivets are available.
Q: What does port and starboard mean when talking about cleats?
Ans: Port is the left-hand side and starboard is the right-hand side. So, if used on a sail the port cleat will go on the left-hand surface of the sail and the starboard on the right-hand surface.
Q: What accessories can be used with the CL241?
Ans: There are backplates and rivets available if you are attaching the cleat to a sail.
Q: Can the Clamcleat® CL241 cleat be sewn or riveted onto the sail?
Ans: The Clamcleat® CL241 cleat can be sewn or riveted onto the sail and a backing plate and rivets are available.
Q: Is the Clamcleat® CL241 available in plastic?
Ans: The Clamcleat® CL241 is available in plastic and the part number is CL281 or CL241.
Q: Is the Clamcleat® CL241 available for the starboard side?
Ans: The Clamcleat® CL241 is available on the starboard side and the part number is CL273.
Q: Why does Clamcleat® not publish safe working loads (SWL) or break loads for its cleats?
Ans: The quality, type and style of the rope or cord plays a major role in the performance of the cleat. Normally the better the quality of the rope the greater holding power, also some cleats are designed to slip once they exceed the desired holding load as a safety feature including securing fabrics such as sunshades or covers.
Q: Do you get a better performance with an Aluminum cleat?
Ans: Aluminum cleats do not improve the performance of the cleat, but they can achieve higher holding loads and they also might improve the lifespan of the cleat especially if the rope will be in contact with the teeth whilst the rope is being pulled through during adjustment.
Q: What different coating are there for the Aluminum cleats?
Ans: The standard coating for the cleat is a Stoving Aluminum silver enamel coating. For extra protection from corrosion and a high-tech appearance the cleats are also available in a dark grey Hard anodized finish. The part no in suffixed with “AN” to identify the hard anodized finish.
Q: How long should an Aluminum cleat last?
Ans: This really depends on the usage, the quality and age of the rope used etc. so is very difficult to gauge. The ultraviolet rays will discolor the cleats over time and in very sunny climates may affect the life of the cleat. In extreme climates the life expectancy should be 10 -15 years depending on usage and in more moderate climate 20 + years.
Q: What type of rope or cord will give the best performance on my cleats?
Ans: In our experience a braided good quality rope gives you the best holding performance.
Q: Is there any maintenance required to a cleat to keep it performing well?
Ans: We would recommend flushing the with fresh water as often are you can.
