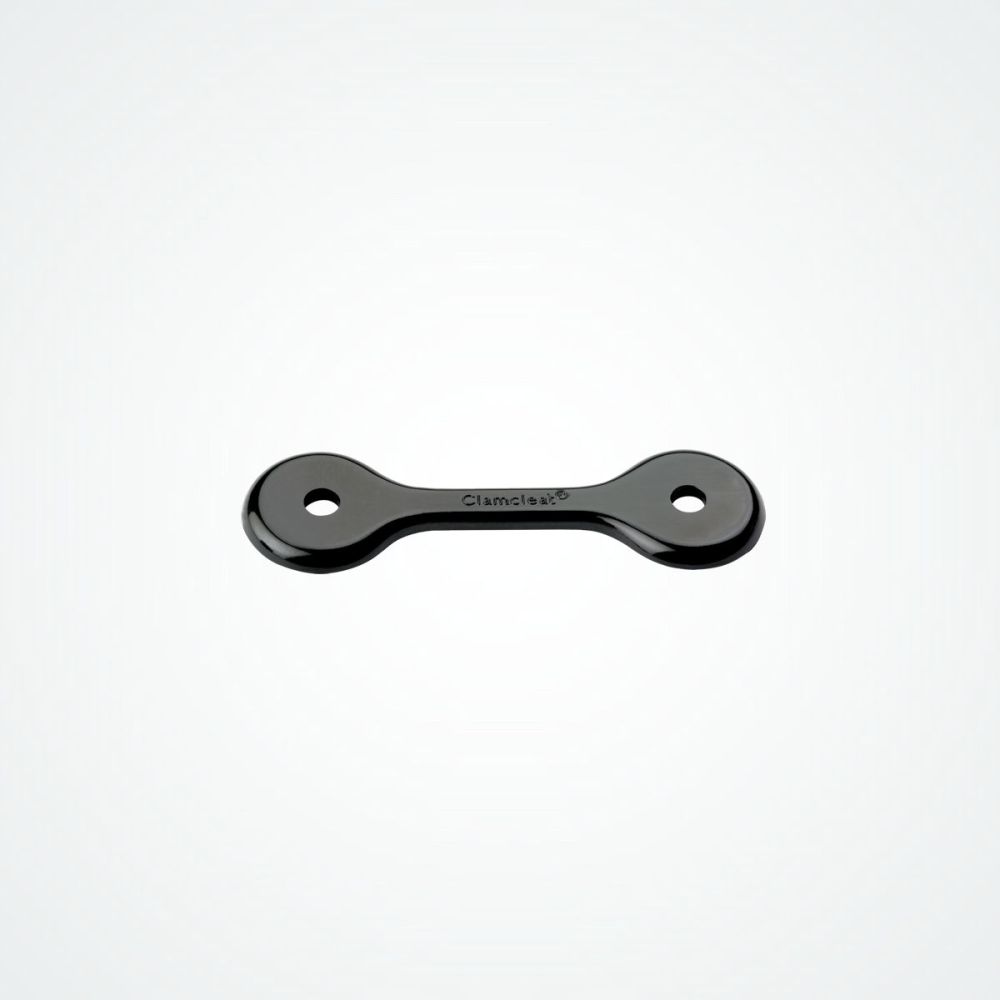

CL212BP-B Black backplate
Black backplate for CL213, CL214, CL241AN, CL258AN, CL259AN and CL273AN.
| Technical Details | Metric | Imperial | |
|---|---|---|---|
| Rope Diameter |  |
N/Amm | N/A" |
| Material |  |
Nylon | Nylon |
| Hole Centres |  |
49mm | 1 15/16" |
| Length |  |
70mm | 2 3/4" |
| Width |  |
21mm | 13/16" |
| Height |  |
3mm | 1/8 |
| Bolt Size |  |
N/A | N/A |
| Screw Size |  |
N/A | N/A |
| Weight |  |
2gms | 0.08oz |
Availability:
In stock
SKU
Clamcleat-CL212BP-B
Clamcleat® CL212BP-B is a Black backplate for black and hard anodised cleats:- CL213, CL214, CL241AN, CL258AN, CL259AN, CL273AN, CL281 and CL283.
Use a backplate when riveting a cleat onto dark coloured fabric, canvas, webbing and sailcloth. It spreads the load and will prevent the rivet pulling through. A backplate can also be used when a cleat is sewn onto fabric. On carbon fibre sails, cleats should only be sewn because alloy rivets can corrode.
Backplates can be purchased separately or with the cleats.
Use CL212BP-B with the black nylon CL213 and CL214 open cleats.
Use CL212BP-B with the hard anodised aluminium CL258AN and CL259AN open cleats.
Use CL212BP-B with the black nylon CL281 and CL283 fairlead cleats.
Use CL212BP-B with the hard anodised aluminium CL241AN and CL273AN fairlead cleats.
For white and silver cleats, use the white CL212BP backplate.
Write Your Own Review
Q: Is there a backing plate for the CL212?
Ans: The backing plate for the CL212 is CL212BP (white) or CL212BP-B (black).
Q: Is CL212 available in aluminum?
Ans: The aluminum version of the CL212 is the CL258.
Q: What size of rope can you use on the CL212?
Ans: The CL212 will accept ropes from 2-5mm (1/16-3/16”)
Q: Does Clamcleat® make a port version of the CL212?
Ans: Clamcleat® starboard version of the CL212 is CL214.
Q: Does Clamcleat® make products for fitting to a sail?
Ans: Clamcleat® make a range of products suitable for fitting to sails both port and starboard side. The cleats are suitable for ropes from 0 to 6mm and are available in Nylon and Aluminum.
Q: Does Clamcleat® make a Leech cleat?
Ans: Clamcleat® make a range of Leech cleats for fitting to sails both port and starboard side. The cleats include CL212, CL214, CL221, CL273 and CL281.
Q: Does Clamcleat® make a sail edge cleat?
Ans: Clamcleat® make 2 different sizes of sail edge cleat CL267 and CL269.
Q: How do you secure a cleat to a sail?
Ans: Clamcleat® has two options for securing the sail cleat to the sail which are Sewn and rivetted. Backing plates and rivets are available.
