CL263 Nylon Micros cleat
A very neat small nylon cleat with advanced tooth technology.
| Technical Details | Metric | Imperial | |
|---|---|---|---|
| Rope Diameter |  |
1 - 4mm | 3/64 - 5/32" |
| Material |  |
Nylon | Nylon |
| Hole Centres |  |
24mm | 15/16" |
| Length |  |
44mm | 1 3/4" |
| Width |  |
13mm | 1/2" |
| Height |  |
16mm | 5/8 |
| Bolt Size |  |
M3 | #4-40 1/8" |
| Screw Size |  |
3 | No 4 |
| Weight |  |
4.8gms | 0.2oz |
Availability:
In stock
SKU
Clamcleat-CL263

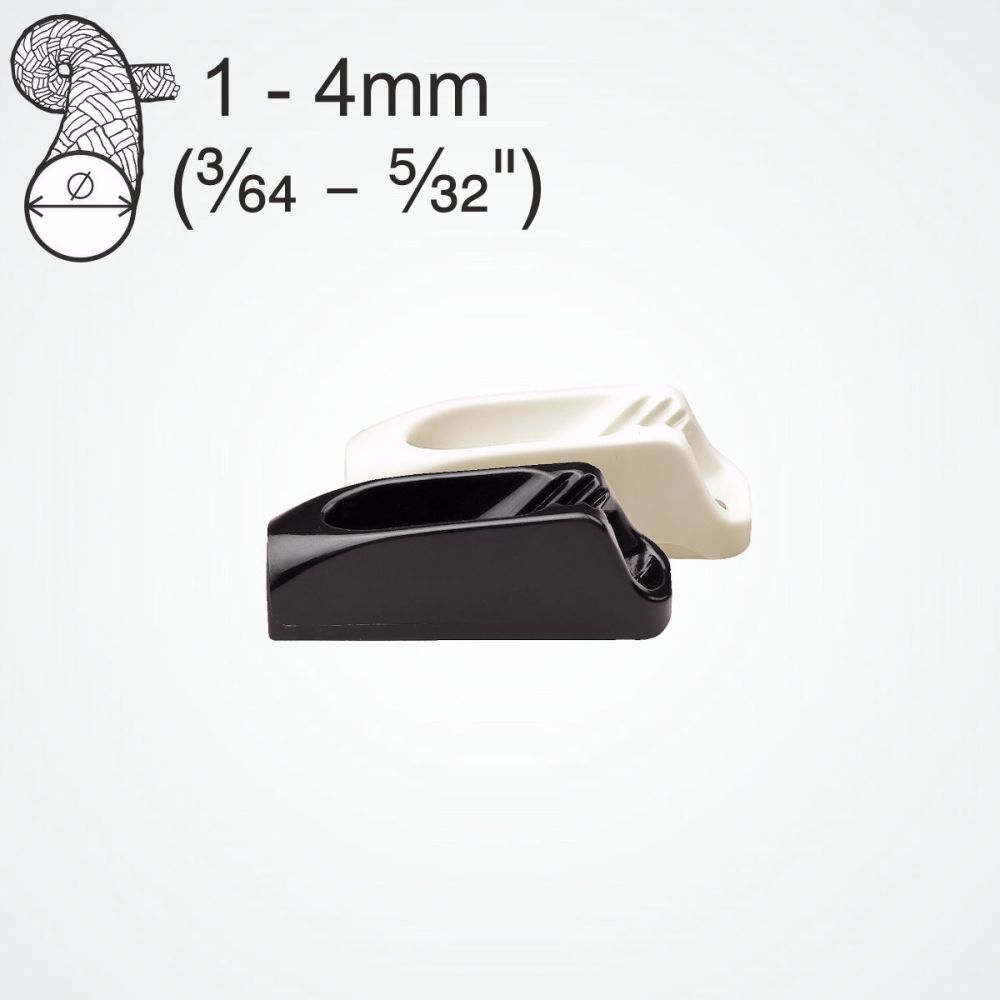

A small, neat and lightweight nylon cleat, with a fairlead to guide the rope into the teeth. Advanced tooth technology to hold all types of small rope. Applications include Canoes (seat & rudder lines); Dinghy control lines; window blinds and holding & adjusting drop-down surfaces.
CL263 is black. CL263W is white.
CL268 is the aluminium version of the CL263.
Using a CL823 Tapered Pad can aid rope alignment in a CL263.
A same size cleat, without a fairlead, is CL274.
To use a CL263 in mid-air, look at CL828-63.
A larger version of CL263 is CL272, for 3-6mm ropes.
Write Your Own Review
Q: What size of rope should I use on my CL263 cleat?
Ans: The size of rope used on the CL263 is from 1 to 4mm (3/64-5/32”).
Q: What fixing do I need to secure the Clamcleat® CL263 Cleat?
Ans: The fixing for a CL263 cleat is M3 CSK or 3.0mm no 4 woodscrews.
Q: What are the hole centers for securing the Clamcleat® CL263 Cleat?
Ans: The hole centers for the CL263 cleat are 24mm 1 15/16”.
Q: Is there a tapered pad for the Clamcleat® CL263 cleat?
Ans: The tapered pad for the CL263 is CL823.
Q: Is CL263 available in Aluminum?
Ans: The Aluminum version of the CL263 is the CL268.
Q: What is a fairlead cleat?
Ans: A fairlead guides the rope through the cleat making it easier to adjust the position of the rope. The rope will need to be threaded through the cleat during installation.
Q: Why does Clamcleat® not publish safe working loads (SWL) or break loads for its cleats?
Ans: The quality, type and style of the rope or cord plays a major role in the performance of the cleat. Normally the better the quality of the rope the greater holding power, also some cleats are designed to slip once they exceed the desired holding load as a safety feature including securing fabrics such as sunshades or covers.
Q: How long should a Nylon cleat last?
Ans: This really depends on the usage, the quality and age of the rope used etc. so is very difficult to gauge. The ultraviolet rays will discolor the cleats over time and in very sunny climates may affect the life of the cleat. In extreme climates the life expectancy should be 10 -15 years depending on usage and in more moderate climate 20 + years.
Q: Can I fit my cleats using pop rivets?
Ans: Using pop rivets to fit your cleat is a tidy quick way of securing the cleat. Ensure the pop rivet is at 90 degrees to the cleat when fixing and with certain smaller cleats the head of the pop rivet gun will not sit onto the pop rivet when in place so you will require to add a spacer between the gun and the rivet.
Q: What type of rope or cord will give the best performance on my cleats?
Ans: In our experience a braided good quality rope gives you the best holding performance.
Q: Is there any maintenance required to a cleat to keep it performing well?
Ans: We would recommend flushing the with fresh water as often are you can.
