CL823 Tapered Pad for Micros cleats
Aids correct rope/cleating alignment for Micros cleats
| Technical Details | Metric | Imperial | |
|---|---|---|---|
| Rope Diameter |  |
N/Amm | N/A" |
| Material |  |
Polypropylene | Polypropylene |
| Hole Centres |  |
24mm | 15/16" |
| Length |  |
47mm | 1 13/16" |
| Width |  |
18mm | 11/16" |
| Height |  |
9mm | 3/8 |
| Bolt Size |  |
M3 | #4-40, 1/8" |
| Screw Size |  |
3 | No. 4 |
| Weight |  |
4gms | 0.15oz |
Availability:
In stock
SKU
Clamcleat-CL823

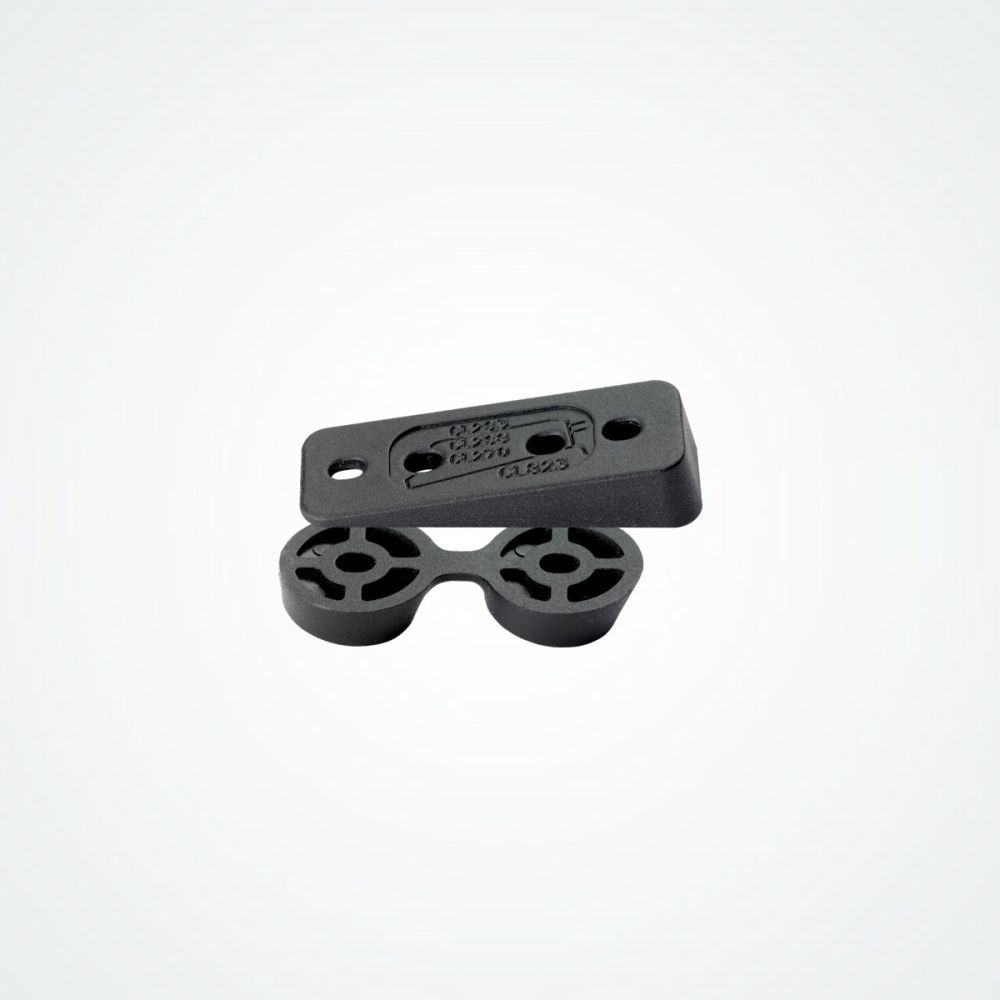

The Clamcleat® CL823 Tapered Pad allows correct rope/cleating alignment. Backplate provides under deck support when bolting through thin sections and is supplied with every pad.
Can be used either way round, or stacked. Double stack the same way round to angle the cleat at 20 degrees. Or make a riser block to rais the cleat by about 10mm.
The CL823 is designed to be used with these cleats:
CL263 nylon Micros cleat with a fairlead.
CL268 & CL268AN Aluminium Racing Micros cleat with a fairlead.
CL270 & CL270AN Aluminium Racing Micros cleat with a fairlead and a becket, which can allow a 4:1 rig.
CL274 nyon open Miccros cleat.
CL275, CL275AN Aluminium Racing open Micros cleat.
CL277, CL277AN Aluminium Racing Micros cleat with a side entry hook-in fairlead on the Starboard side.
CL278 & CL278AN Aluminium Racing Micros cleat with a side entry hook-in fairlead on the Port side.
Write Your Own Review
Q: What is a Clamcleat® tapered pad?
Ans: Clamcleat® make different sizes of tapered pads for all of its range of cleats. The tapered pad fits under the cleat (either way around) and aids rope alignment keeper.
CL802 for CL204&CL222
CL803 for CL209 & CL254
CL804 for CL201, CL219, CL237 & CL238
CL805 for CL205 & CL220
CL818 for CL203, CL211Mk1, CL217Mk1, CKL218Mk1, CL236 & CL704
CL819 for CL211Mk2, CL217Mk2, CL218Mk2 & CL211Mk2/S2
CL823 for CL274 & CL275
Q: Does Clamcleat® make accessories for the cleats?
Ans: Clamcleat® make a range of accessories for 3 sizes of fairlead cleat, CL268 and Mk2 range and the Mk1 range of cleats. The accessories are a tapered pad, Keeper (keeps the rope either in or out of the cleat) and the Cage (allows the rope to enter the cleat even if the lead angle is poor)
Q: How can I improve the rope lead into my Clamcleat® cleats?
Ans: Clamcleat® make a range of tapered pads which fit under the cleat to aid alignment. Also, the Cage (allows the rope to enter the cleat even if the lead angle is poor)
