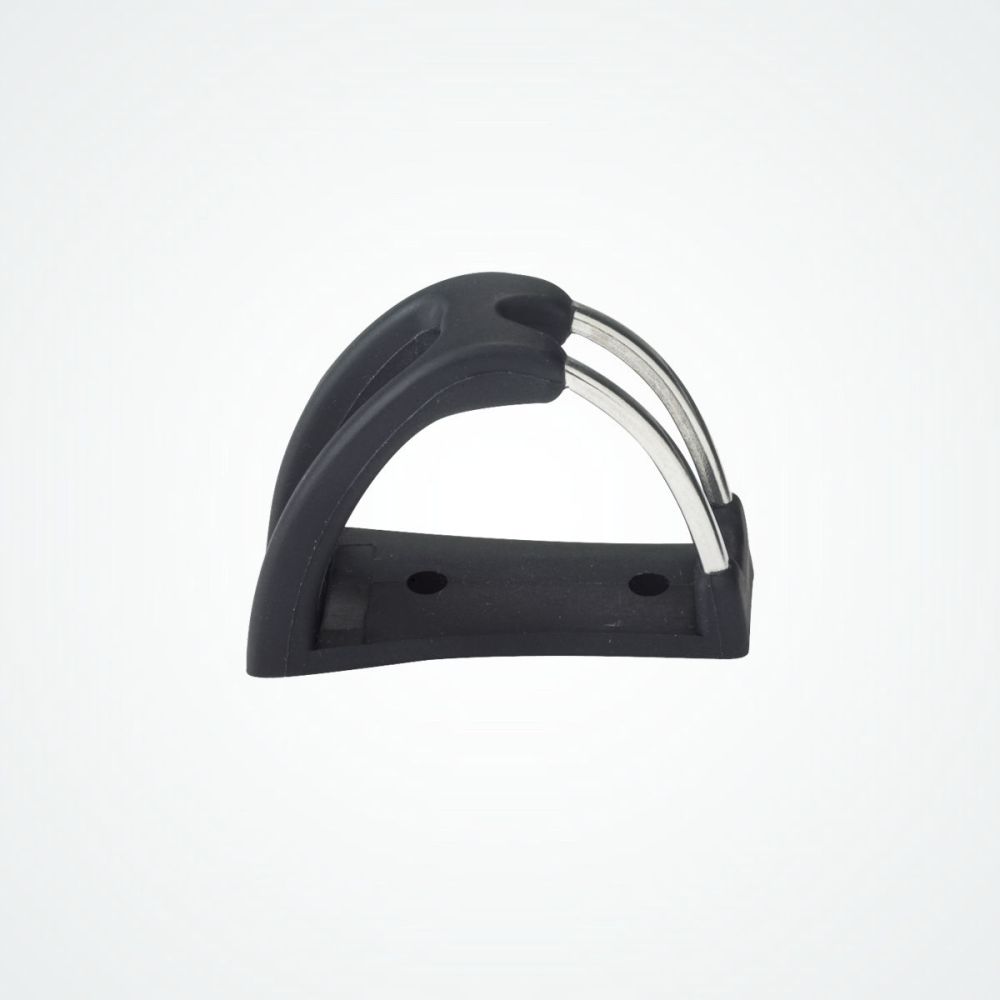

CL817 Cage for CL815

Be the first to review this product

An accessory that allows easy cleating at extreme angles.

Technical Details	Metric	Imperial
Rope Diameter	3 - 6mm	1/8 - 1/4"
Material	Nylon & Stainless Steel	Nylon & Stainless Steel
Hole Centres	27mm	1 1/16"
Length	62mm	2 7/16"
Width	27mm	1 1/16"
Height	44mm	1 3/4
Bolt Size	M4	#8-32. 5/32"
Screw Size	4.2	No 8
Weight	23gms	0.8oz

Details

The Cage is an accessory that allows ropes to be cleated and uncleated at an angle of up to 70 degrees, rather than only in line with the cleat. Adding Cages to cleats fitted with Keepers will allow the helmsman or crew to adjust a control line from different positions quickly, easily, positively and without fear of accidental cleating.

Simply pull the rope back at an angle and it is guided down into the teeth, as shown in the sketches below. The stainless steel rear fairlead provides a long life under racing conditions.
The CL817 Cage is used with the CL815 Keeper and CL211 Mk2 cleat.

The CL211 Mk2 cleat is avialable separately.
The CL815 Keeper is also available separately.
Use a CL819 Tapered Pad can aid rope alignment.
The whole assembly of CL211 Mk2 cleat + CL815 Keeper + CL817 Cage is CL832CKC.
CL825CKC has 2 assemblies, designed to replace on cleat with two, without having to drill any extra holes.

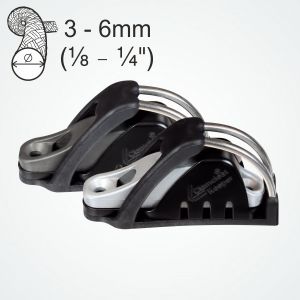

CL833CKC is a slightly larger assembly of CL211 Mk1 cleat + CL814 Keeper + CL816 Cage.
